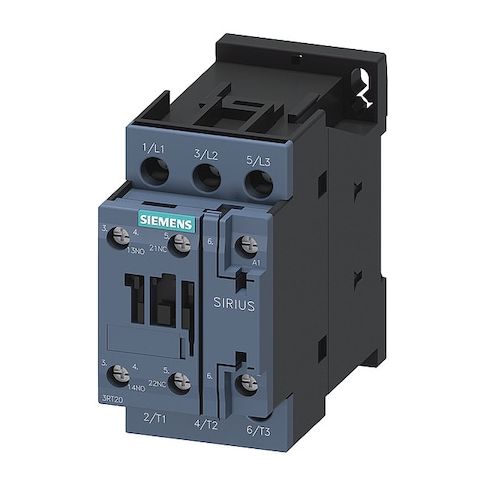

IEC Magnetic Contactor, 1NC/1NO, 230V AC, 3 P, Non-Reversing, Screw MPN:3RT20261AL20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for switching power circuits in various industrial applications. Rated for 230V AC and 25A inductive/40A resistive, this 3-pole, non-reversing device is ideal for use in motor control, lighting, and heating systems. Its compact design and DIN rail mountability make it easy to integrate into existing infrastructure. With a high operating durability of 10 million cycles and a wide temperature range, this contactor provides reliable operation and long lifespan. Suitable for use in control panels, motor starters, and other industrial control applications, it ensures safe and efficient power distribution.
Top product features:
- Switches power circuits within specified voltage and current ranges
- Has a 3-pole, non-reversing configuration
- Includes auxiliary contacts with a 1NO/1NC configuration
Top product applications:
- Power distribution and control in industrial settings
- Industrial automation and robotics
- High-voltage power transmission and distribution
The item is a Siemens IEC Magnetic Contactor rated for switching power circuits within specified voltage and current ranges
- it is a 3-pole, non-reversing device.
Key features
- Auxiliaries: 2 total
- Auxiliary Contact Configuration 1NO/1NC
- Auxiliary Contact Form 1NC/1NO
- Includes Auxiliary Contacts: Yes
- - Coil and operation: Coil Voltage 230 V AC
- Frequency 50/60 Hz
- Phase Three
- Reversing: Non-Reversing
- - Frame/Series: Series SIRIUS 3RT20
- Frame Size S0
- Item IEC Magnetic Contactor
- - Electrical/physical: Electrical Connection Screws
- IP Rating IP20
- Mounting Style DIN Rail, Surface
- Mounting Position Vertical
- - Ratings: Max. Voltage 690V AC
- Hz 50/60
- Full Load Amps Inductive 25 A
- Resistive 40 A Note: Ratings reflect maximum electrical parameters.
- - Power and loss: Max Operating Watts 11 kW (400 V, AC-3)
- 23 kW (400 V, AC-1)
- Watts Loss 10.5 W (Current Independent)
- - Mechanical/temperature: Mechanical Operating Durability 10,000,000 cycles
- Max Operating Temperature 140°F
- Min Operating Temperature -13°F Note: Rated for operation within specified temperature ranges.
- - Dimensions: Depth 97 mm
- Height 85 mm
- Width 45 mm
- Overall depth 3.63 in
- Overall height 4.18 in
- Overall width 2.13 in
- - Other: NEMA Enclosure Rating: No Enclosure Standards REACH Art 33, WEEE (2012/19/EU)
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.62
- Package Width: 2.13
- Package Height: 4.15
- Package Weight: 0.92
