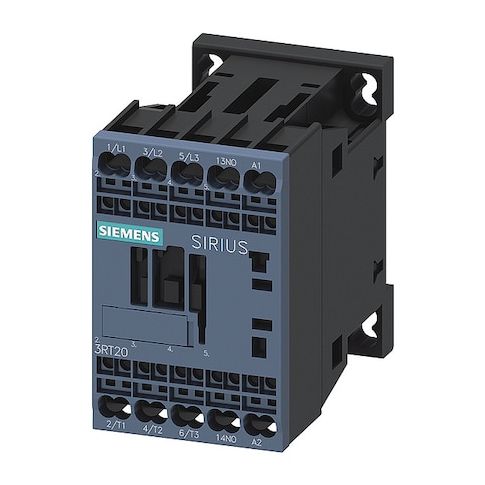

IEC Magnetic Contactor, 1NO, 230V AC, 3 P, Non-Reversing, Spring Type MPN:3RT20182AP01

• The Siemens IEC Magnetic Contactor is rated for operation within IEC standards and specified electrical parameters. It is a 3-pole, non-reversing contactor with a single normally open auxiliary contact (1NO) and a 230 V AC coil. The unit belongs to the S00 frame size (SIRIUS 3RT20 series) and is designed for 50/60 Hz operation. It uses spring-type terminals and is compatible with specified mounting options. IP20 rating indicates the degree of protection against solid objects but does not imply safety or suitability for all environments.

  - Poles: 3

• - Main contacts: 3 normally open
• - Auxiliary contacts: 1 NO
• - Coil voltage: 230 V AC
• - Phase: Three
• - Reversing: Non-Reversing
• - Frame size / Series: S00 / SIRIUS 3RT20
• - mounting: DIN Rail, Surface
• Mounting position: Vertical
• - Terminal connection: Spring Type
• - IP rating: IP20
• - Enclosure: No Enclosure
• - Dimensions (W x H x D): 1.97 in x 3.08 in x 2.92 in
