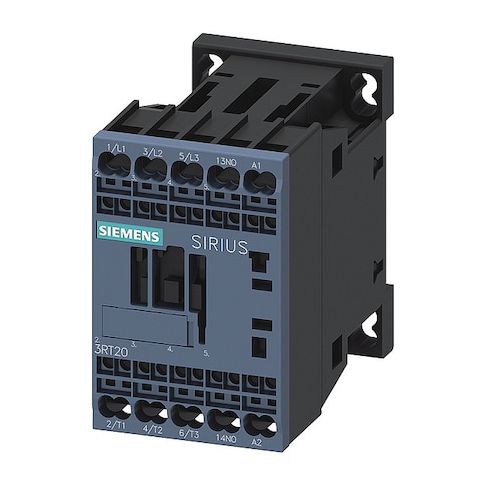

IEC Magnetic Contactor, 1NO, 110V AC, 3 P, Non-Reversing, Spring Type MPN:3RT20152AF01

• The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing switching device with 1 normally-open auxiliary contact. It operates from a 110 V AC coil and uses an electromagnetic mechanism to open or close its main contacts, enabling control of motors, lighting, and other industrial loads. Constructed to meet IEC standards

• intended for use in control panels requiring standardized sizing and interchangeability. Part of the SIRIUS 3RT20 family (Frame Size S00)
• equipped with a spring-type electrical connection.

  Key features

• - Coil Voltage: 110 V AC
• - Poles/Main Contacts: 3 poles
• 3 normally open main contacts
• - Auxiliary Contacts: 1 NO (Form 1NO)
• - Reversing Capability: Non-Reversing
• - Frame/Series: Frame Size S00
• Series SIRIUS 3RT20
• - Standards: REACH Art 33, WEEE (2012/19/EU)
• - Frequency: 50/60 Hz
• - Maximum Voltage Rating: 690 V AC
• - IP Rating: IP20
• - Embedded Surge Suppressor: No
• - Electrical Connection: Spring Pulley
• Terminal Connection Type: Spring Type
• - Mounting Style: DIN Rail, Surface
• - Overall Dimensions: Depth 2.92 in
• Height 3.08 in
• Width 1.97 in
• - NEMA Enclosure Rating: No Enclosure
• - Full Load Current: Inductive 7 A
• Resistive 18 A
• - HP Ratings: 1/4 hp @ 120 V
• 3/4 hp @ 240 V
• 1 1/2 hp @ 208 V (3-phase)
• 2 hp @ 240 V (3-phase)
• 3 hp @ 480 V (3-phase)
• 5 hp @ 575 V (3-phase)
• - Mechanical Durability: 30,000,000 cycles

  - Overall dimensions provided for reference only

• actual measurements may vary slightly depending on manufacturing tolerances.
• - NEMA enclosure rating not specified
• consult product documentation for enclosure details if necessary.
