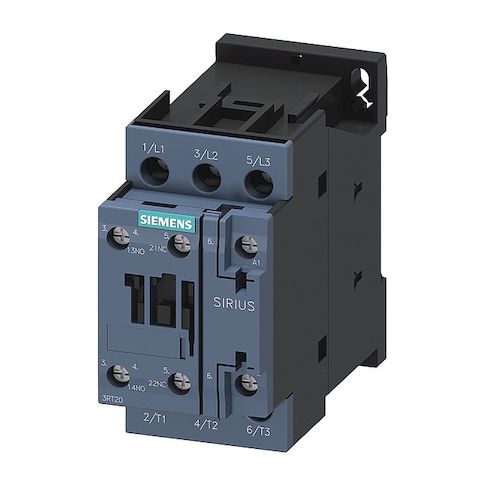

IEC Magnetic Contactor, 1NC/1NO, 230V AC, 3 P, Non-Reversing, Screw MPN:3RT20261AP00

• The SIEMENS - IEC Magnetic Contactor is a non-reversing, three-pole device designed for industrial and commercial applications. It operates at a coil voltage of 230V AC with an auxiliary contact configuration of 1NO/1NC. The contactor has a frame size S0 and adheres to the IEC style. Its electrical connections are secured by screws, and it does not include an embedded surge suppressor. This unit can be mounted vertically on either DIN rails or surfaces.

  Key features of this product include:

• - A maximum operating temperature of 140 degrees F and minimum operating temperature of -13 degrees F.
• - An IP rating of IP20 indicating protection against solid objects larger than 12mm but no protection against water.
• - Capability to handle various horsepower loads depending on phase and voltage: from 2 hp at single-phase 120V AC up to 20 hp at three-phase 600V AC.
• - Maximum operating watts of up to 11 kW (at 400V, AC-3) or up to23 kW (at 400V, AC-1).
• - Mechanical durability tested under specific conditions
• results may vary based on usage.
• - Response times observed in testing ranged from approximately four milliseconds (AC operation opening delay) to approximately170 milliseconds (DC operation closing delay)
• actual response times may vary.

  This product complies with REACH Art33 standards and WEEE directive(2012/19/EU).
