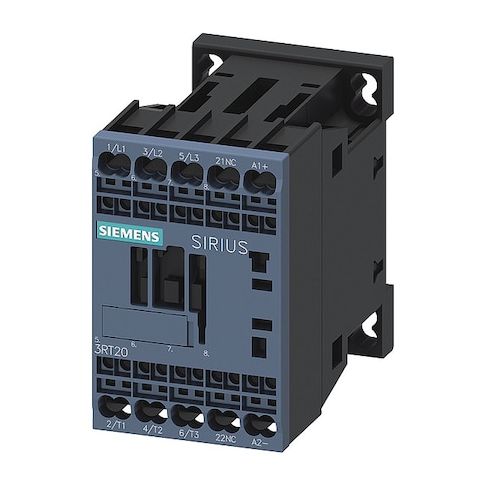

IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Non-Reversing, Spring Type MPN:3RT20152FB42
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for controlling power circuits in accordance with IEC standards. Suitable for use in industrial control panels, it features a 24V DC coil and a 3-pole configuration with 3 normally open main contacts and 1 normally closed auxiliary contact. This product is ideal for applications requiring high switching cycles and is designed to withstand a high number of operations. Its compact design and spring-type terminal connection make it easy to install and maintain, making it a valuable addition to any industrial control system.
Top product features:
- Electrically operated switching device that controls power circuits in accordance with IEC standards.
- Three normally open main contacts that provide a direct benefit to the user by allowing for multiple circuit connections.
- Embedded surge suppressor that protects the product from electrical surges and spikes.
Top product applications:
- Motor Control Circuits
- Industrial Automation Systems
- Control Panels for HVAC Systems
Siemens IEC Magnetic Contactor is an electrically operated switching device that controls power circuits in accordance with IEC standards. It features a 24 V DC coil and a 3-pole configuration with three normally open main contacts, plus one normally closed auxiliary contact (1NC). The product is designed for DIN Rail or surface mounting in control panels.
Key features
- - Coil voltage: 24 V DC
- - Poles: 3
- Main contacts: 3 NO
- - Auxiliary contacts: 1 NC
- - Reversing: Non-Reversing
- - Frame/Series: S00
- Series: SIRIUS 3RT20
- - Mounting: DIN Rail, Surface
- Mounting hole diameter: 0.2 in
- hole distances (Height: 1.97 in, Width: 1.38 in)
- Mounting position: Vertical
- - Terminal connection: Spring Type
- - Embedded surge suppressor: Yes
- - Rated for operation within specified voltage ranges
- - IP rating: IP20
- NEMA Enclosure: No Enclosure
- - Full Load Amps: Inductive 7 A
- Resistive 18 A
- - Power ratings: 3 kW (AC-3) at 400 V
- 11 kW (AC-1) at 400 V
- - Designed to withstand a high number of switching cycles under normal operating conditions.
- - Intended for use within the specified temperature range.
- - Dimensions: Overall depth 2.92 in
- height 3.08 in
- width 1.97 in
- - Phase: Three
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Includes auxiliary contacts: Yes
- - Connection type: Spring Type
- - Depth (mm): 73 mm
- Width (mm): 45 mm
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.89
- Package Width: 1.97
- Package Height: 3.05
- Package Weight: 0.69
