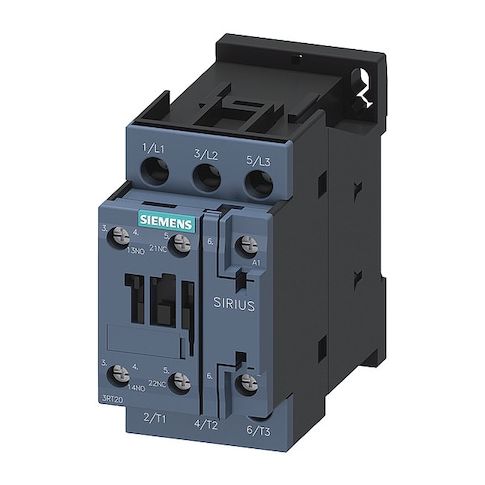

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20281AB00
Free Shipping
In Stock
The Siemens SIRIUS 3RT20 IEC Magnetic Contactor is a reliable and efficient solution for control applications in various industries. Its 3-pole, non-reversing design ensures precise control over motor operations, while its 24V AC coil and IP20 rating provide a safe and durable performance. This magnetic contactor is ideal for use in industrial control panels, machine control systems, and other applications where precise control and reliability are critical. Its compact design and screw terminals make it easy to mount and connect, making it a great choice for applications in manufacturing, automation, and process control.
Top product features:
- Operates at voltages up to 690 V AC
- Has 3 poles for three-phase operation
- Features 1 normally open (NO) and 1 normally closed (NC) auxiliary contacts
Top product applications:
- Industrial Control Systems: The Siemens IEC Magnetic Contactor is suitable for use in industrial control systems, where it can be used to control and monitor the flow of electrical current.
- Motor Control: This product can be used in motor control applications, such as controlling the speed of motors or switching them on and off.
- Home Automation: The 24V AC coil and 3-pole configuration make this product suitable for use in home automation systems, where it can be used to control lighting, heating, and cooling systems.
Siemens IEC Magnetic Contactor, 3-pole, non-reversing, with a 24 V AC coil. Auxiliary contacts configured as 1 NO / 1 NC (2 total). Mounting via DIN Rail or surface with screw terminals.
- Frame/Series: S0
- SIRIUS 3RT20
- - Coil Voltage: 24 V AC
- - Poles: 3
- - Auxiliary Contacts: 2 (1 NO / 1 NC)
- - Reversing Capability: Non-Reversing
- - Mounting Style: DIN Rail, Surface
- - Electrical Connection: Screws
- - Designed to operate at voltages up to 690 V AC
- - IP Rating: IP20
- - Phase: Three
- - Frequency: 50 Hz
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.62
- Package Width: 2.13
- Package Height: 4.15
- Package Weight: 0.94
