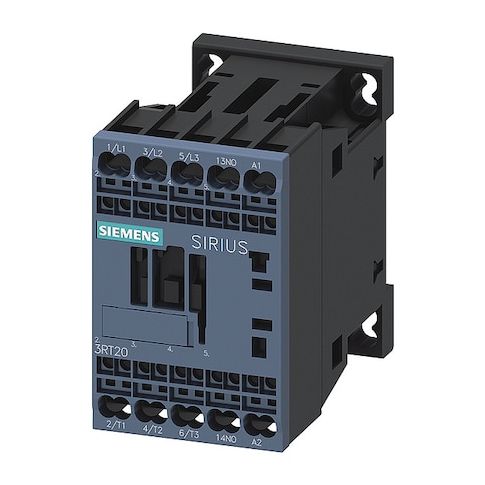

IEC Magnetic Contactor, 1NO, 110V-120V AC, 3 P, Non-Reversing, Spring Type MPN:3RT20152AK61
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling three-phase electrical circuits. Designed for use in a variety of applications, including industrial automation, HVAC, and lighting systems, this contactor offers a range of benefits, including fast response times, high current capacity, and durable construction. With a versatile mounting style and operating temperature range of -13°F to 140°F, it can be easily integrated into existing systems. Its compliance with REACH Art33 and WEEE (2012/19/EU) standards ensures a safe and environmentally responsible solution for controlling electrical loads up to 18A and 7A inductive loads.
Top product features:
- Non-reversing operation allows for reliable and predictable control of loads.
- The contactor has been tested with inductive loads up to 7A and resistive loads up to 18A, ensuring compatibility with a wide range of electrical loads.
- The device comes with spring type electrical connections, providing secure and reliable connections for electrical circuits.
Top product applications:
- Industrial Automation
- Motor Control Systems
- Power Distribution Panels
The SIEMENS - IEC Magnetic Contactor is a non-reversing, three-phase contactor with an auxiliary contact configuration of 1NO. It operates on a coil voltage of 110V-120V AC and has been tested with inductive loads up to 7A and resistive loads up to 18A. The device comes in a S00 frame size with spring type electrical connections. This product does not include an embedded surge suppressor but includes auxiliary contacts.
Key features based on attributes:
- Coil Voltage: Rated for operation within the specified voltage ranges of 110V to 120V AC.
- - Full Load Amps: Has been tested with inductive loads up to 7A and resistive loads up to 18A.
- - Horsepower Ratings: Varies depending on phase and voltage
- ranges from as low as quarter horsepower at single phase, 120V AC, to as high as five horsepower at three-phase, 600V AC.
- - Mounting Style: Versatile mounting options including DIN Rail or Surface mountings.
- - Operating Temperature Range: Designed for use within temperature ranges of -13 degrees F to +140 degrees F.
- - Response Time: Response times may vary based on operation type (AC/DC) and delay operation opening/closing times.
- - Standards Compliance: Complies with REACH Art33 standards and WEEE (2012/19/EU).
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 3.10
- Package Height: 2.00
- Package Weight: 0.55
