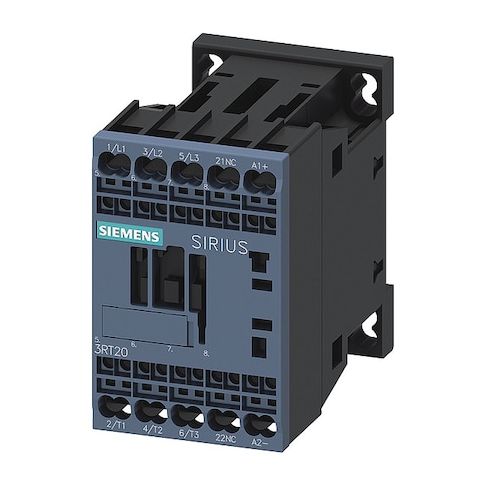

IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Non-Reversing, Spring Type MPN:3RT20182BB42

• The SIEMENS - IEC Magnetic Contactor is a non-reversing, three-pole device with an auxiliary contact configuration of 1NC. It operates on a coil voltage of 24V DC and has a spring type electrical connection. The product belongs to the SIRIUS 3RT20 series and comes in an S00 frame size. With its DIN Rail or surface mounting style, it can be positioned vertically for optimal use.

  Key features include:

• - A maximum operating temperature of 140 Degrees F and minimum operating temperature of -13 Degrees F.
• - An overall depth, height, and width measuring at 3.4 inches, 2.85 inches, and 2 inches respectively.
• - Horsepower ratings vary from one phase to three phases across different voltages: For example, it has been tested with horsepower of up to 10 hp at Three Phase -480V AC/600V AC.
• - Mechanical Operating Durability tested up to thirty million operations.
• - Compliance with REACH Art33 & WEEE (2012/19/EU) standards.
• - Response times can range between various milliseconds based on operational conditions
• for instance, the measured range for an AC Operation Closing Delay is between eight and forty milliseconds.
• - Maximum Voltage Rating is specified as 690V AC while Maximum Operating Watts are specified as thirteen kilowatts (at four hundred volts).
