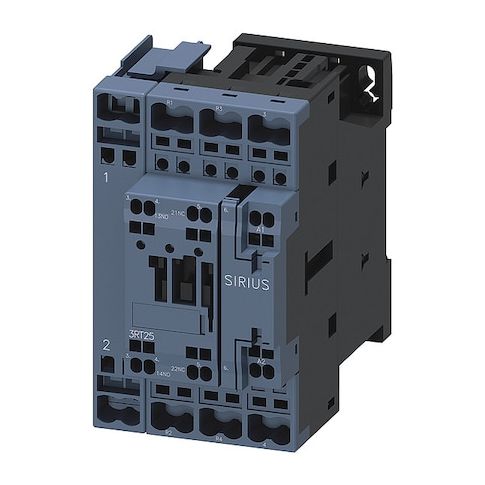

IEC Magnetic Contactor, 1NC/1NO, 230V AC, 4 P, Non-Reversing, Screw MPN:3RT25262AP00
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for a wide range of applications in industrial automation, including motor control, lighting, and HVAC systems. Its 4-pole, non-reversing design provides a high level of control and versatility, while its 230V AC coil voltage rating ensures compatibility with standard electrical systems. With its durable design and long lifespan, this contactor is ideal for use in harsh environments and demanding applications, providing a reliable and efficient solution for controlling electrical loads. Its compact size and easy mounting options make it easy to integrate into existing systems.
Top product features:
- Operates within specified IEC standards for electrically operated switching devices.
- Has two normally closed and two normally open main contacts for reliable switching.
- Supports mounting via DIN Rail or surface mounting methods for flexible installation options.
Top product applications:
- Industrial Automation
- Motor Control Circuits
- Power Distribution Systems
The IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. This 4-pole, non-reversing model has a coil voltage rating of 230 V AC and conforms to the specifications of the SIRIUS 3RT25 series, frame size S0. It is equipped with auxiliary contacts
- contains two normally closed and two normally open main contacts, and supports mounting via DIN Rail or surface mounting methods.
- Coil Voltage: 230 V AC
- - Poles: 4
- - Reversing Capability: Non-Reversing
- - Main Contacts: 2 NC / 2 NO
- - Auxiliary Contacts: 4 total (1NO/1NC and 1NC/1NO configurations)
- - Frame Size: S0
- - Mounting Method: DIN Rail or Surface mounting
- - Terminal Connection Type: Screw
- - IP Rating: IP20
- - Frequency: 50 Hz
- - Series: SIRIUS 3RT25
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Embedded Surge Suppressor: No
- - NEMA Enclosure Rating: No Enclosure
- - Max Operating Watts: rated for maximum operating wattages as specified under standard conditions at 400 V in AC-4, AC-1, and AC-3 categories
- - Full Load Amps: Inductive 25 A
- Resistive 40 A
- - Mechanical Durability: designed for mechanical durability up to approximately 30 million cycles under normal operating conditions
- - Mounting Hole Diameter: 0.19 in
- - Mounting Hole Distances: Height 2.95 in, Width 1.38 in
- - Overall Dimensions: 4.41 in (Depth) x 5.16 in (Height) x 3.00 in (Width) (112 mm x 131 mm x 76 mm)
- - Includes Auxiliary Contacts: Yes
- - Item: IEC Magnetic Contactor
- - Frame / Series / Class: S0
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.41
- Package Width: 2.99
- Package Height: 5.16
- Package Weight: 1.18
