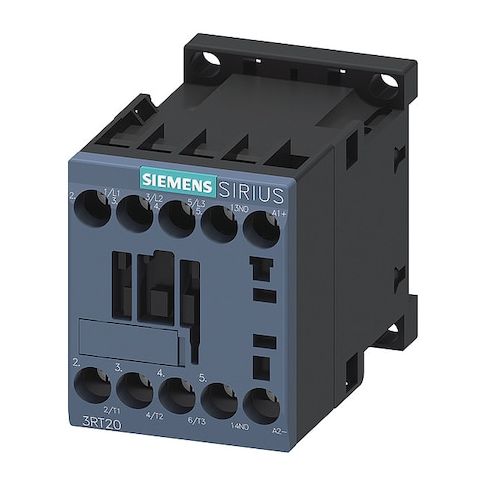

IEC Magnetic Contactor, 1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20171FB41
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device ideal for various applications requiring precise control and automation. Designed for use in non-reversing applications, this 3-pole contactor features a 24V DC coil and screw terminals for secure connections. Its compact design and robust construction ensure durability and long lifespan, with a mechanical durability of 30,000,000 cycles. Suitable for use in industrial settings, the contactor is rated for voltages up to 690V AC and temperatures from -13°F to 140°F, making it an excellent choice for a wide range of applications, including HVAC, manufacturing, and process control.
Top product features:
- Operates at 24V DC coil voltage for efficient and reliable control
- Has 3 normally open (NO) main contacts for flexible circuit configuration
- Features an embedded surge suppression component for enhanced protection against voltage spikes
Top product applications:
- Motor Control Circuits
- Power Distribution Systems
- Industrial Automation
The SIEMENS IEC Magnetic Contactor is an electrically operated switching device (IEC standard) rated for operation within specified voltage and current ranges. It is a 3-pole, non-reversing contactor with a 24 V DC coil, in frame size S00, and contains auxiliary contacts as specified in the product specifications. The unit uses screw terminals, equipped with an embedded surge suppression component as per design specifications, and rated for use at voltages up to 690 V AC within specified operational parameters.
- Coil Voltage: 24 V DC
- - Poles / Main Contacts: 3 poles
- 3 normally open (NO) main contacts
- - Auxiliary Contacts: 1 NO (1NO)
- Contains auxiliary contacts as specified in the product specifications
- - Reversing Capability: designed for non-reversing applications as specified
- - Frame / Series: S00
- SIRIUS 3RT20
- - Mounting Style: DIN Rail, Surface
- - Terminal Connection: Screws
- - Embedded Surge Suppressor: equipped with an embedded surge suppression component as per design specifications
- - IP Rating: IP20
- - Maximum Voltage Rating: 690 V AC
- - Full Load Amps: Inductive 12 A
- Resistive 22 A
- - Mechanical Durability: 30,000,000 cycles
- - Operating Temperature: -13°F to 140°F
- - Dimensions: Width 45 mm
- Height 58 mm
- Depth 73 mm
- - Enclosure: No Enclosure
- - Standards: complies with applicable standards and regulations
- refer to specific compliance documentation for details
- - Phase: Three
- - Power Loss: 0.5 W (current dependent)
- 4 W (current independent)
