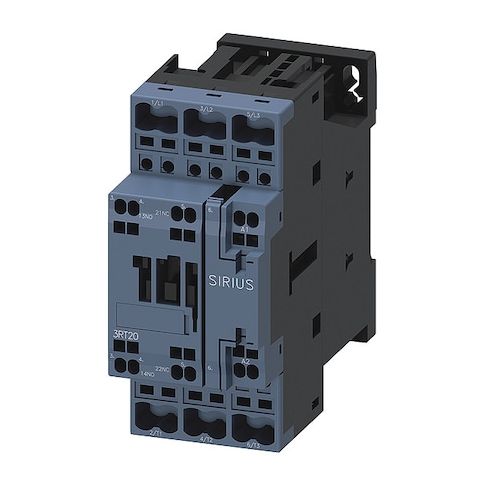

IEC Magnetic Contactor, 1NC/1NO, 230V AC, 3 P, Non-Reversing, Spring Type MPN:3RT20252AL20
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient electrical switching device designed for use in a wide range of applications, including industrial automation, power distribution, and control systems. Its 3-pole, non-reversing configuration and spring-type electrical connections make it suitable for use in both DIN Rail and surface mounting applications. With a maximum voltage rating of 690 V AC and a frequency range of 50/60 Hz, this contactor is ideal for use in high-power applications, including motor control and power distribution systems. Its durable design and high-cycle count ensure reliable operation in demanding environments.
Top product features:
- Operated by a 230 V AC coil
- Contains auxiliary contacts configured as 1 normally open and 1 normally closed contact
- Features spring-type electrical connections
Top product applications:
- Motor control circuits
- Industrial control systems
- Power distribution panels
Siemens IEC Magnetic Contactor is a 3-pole, non-reversing electrical switching device operated by a 230 V AC coil. It contains auxiliary contacts configured as 1 normally open and 1 normally closed contact and three normally open main contacts. Part of the SIRIUS 3RT20 family with frame size S0, it features spring-type electrical connections and is compatible with DIN Rail and surface mounting methods.
- Coil Voltage: 230 V AC
- - Auxiliary contacts: 2 total (1 NO/1 NC) -> Contains auxiliary contacts configured as 1 normally open and 1 normally closed contact
- - Main contacts: 3 normally open
- - Poles: 3
- - Non-reversing configuration
- - Frame Size / Series: S0 / SIRIUS 3RT20
- - Electrical connection: Spring Type
- - IP Rating: IP20
- - Frequency: 50/60 Hz
- - Maximum Voltage Rating: 690 V AC
- - Phase: Three
- - Mounting Style: Compatible with DIN Rail and surface mounting methods
- - Embedded Surge Suppressor: No
- - Includes Auxiliary Contacts: Yes
- - NEMA Enclosure Rating: No Enclosure
- - Width: 45 mm
- - Height: 102 mm
- - Depth: 97 mm
- - Full Load Amps: Inductive 17 A
- Resistive 40 A
- - Mechanical Durability: 10,000,000 cycles
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.27
- Package Width: 2.13
- Package Height: 4.15
- Package Weight: 0.99
