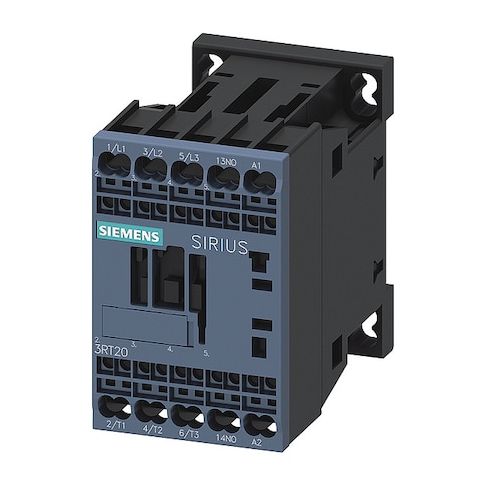

IEC Magnetic Contactor, 1NO, 220V-240V AC, 3 P, Non-Reversing, Spring Type MPN:3RT20152AP61
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical circuits in industrial and commercial applications. Its 3-pole, non-reversing design ensures consistent and safe operation, while its spring-type contactor provides a durable and long-lasting connection. Suitable for use in a variety of settings, including manufacturing, HVAC, and power distribution, this contactor is ideal for applications where high reliability and low maintenance are critical. With its compact design and easy mounting options, it's perfect for DIN Rail or surface mounting in a vertical orientation, making it a versatile and convenient addition to any electrical system.
Top product features:
- IEC Magnetic Contactor
- Operates within IEC standards
- Features 3 normally open main contacts and 1 normally open auxiliary contact
Top product applications:
- Industrial Automation
- Motor Control Centers
- Power Distribution Systems
An IEC Magnetic Contactor is rated for operation within IEC standards. This Siemens model is a 3-pole, non-reversing, spring-type contactor with a coil voltage of 220-240 V AC. It includes 3 normally open main contacts and 1 normally open auxiliary contact, and is part of the SIRIUS 3RT20 series with frame size S00. It is compatible with DIN Rail or surface mounting in a vertical orientation, and conforms to IP20 protection rating
- does not include an enclosure.
- Coil Voltage: 220V-240V AC
- - Contactor Style / Series / Frame: IEC
- SIRIUS 3RT20
- Frame Size S00
- - Poles / Phase / Reversing: 3 poles
- Three phase
- Non-Reversing
- - Main / Auxiliary Contacts: 3 main NO
- 1 auxiliary NO (Form 1NO)
- - Electrical Connections: Spring Pulley
- Terminal Connection Type: Spring Type
- - Maximum Voltage Rating: 690V AC
- - Full Load Amps: specified for use within the rated current and voltage parameters
- - HP Ratings (selected examples): rated for use at the specified horsepower ratings under the indicated voltages and phases
- - Mounting / Orientation: DIN Rail, Surface
- Mounting Position: Vertical
- - Mounting Dimensions: Overall Depth 2.92 in
- Overall Height 3.08 in
- Overall Width 1.97 in
- - Enclosure / Protection: Conforms to IP20 protection rating
- does not include an enclosure
- - Auxiliary / Regulatory: Includes Auxiliary Contacts: Yes
- Standards: REACH Art 33, WEEE (2012/19/EU)
- - Additional specs: Mechanical Operating Durability 30,000,000 cycles
- Maximum/Minimum Operating Temperature: 140°F / -13°F
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.89
- Package Width: 1.97
- Package Height: 3.05
- Package Weight: 0.56
