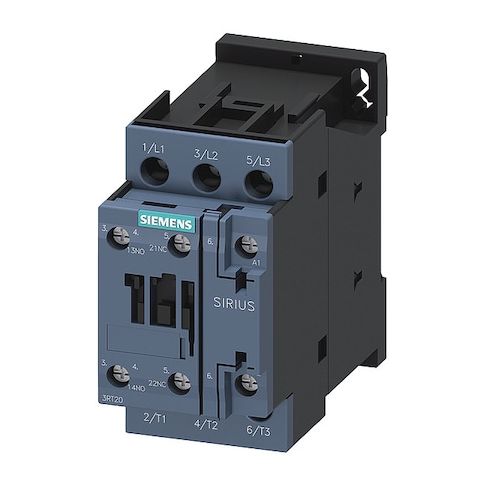

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Non-Reversing, Screw MPN:3RT20241AV60

• SIEMENS IEC Magnetic Contactor is a 3-pole, non-reversing electrical switch operated by a 480 V AC coil. It includes two auxiliary contacts (1NO/1NC) and main contacts configured as 3 normally open. This IEC-standard device is rated for use in control panel applications within specified parameters, with screw terminals and a frame size of S0 in the SIRIUS 3RT20 family.

  Key features

• - Coil voltage: 480 V AC
• - Poles: 3
• - Auxiliary contacts: 2 (1NO/1NC)
• - Main contacts: 3 normally open
• - Frame/Series: S0, SIRIUS 3RT20
• - Mounting: DIN Rail, Surface
• - Electrical connection: Screws
• - Frequency: 60 Hz
• - Phase: Three
• - Maximum voltage rating: 690 V AC
• - IP Rating: IP20
• - NEMA Enclosure Rating: No Enclosure
• - Embedded Surge Suppressor: No
• - Max Operating Watts: 6 kW (at 400 V, AC-3)
• 23 kW (at 400 V, AC-1)
• - Response Time: Opening 4–16 ms
• Closing 8–40 ms
• - Mechanical durability: 10,000,000 cycles
• - Overall dimensions: 4.14 in (H) x 3.55 in (D) x 1.97 in (W)
