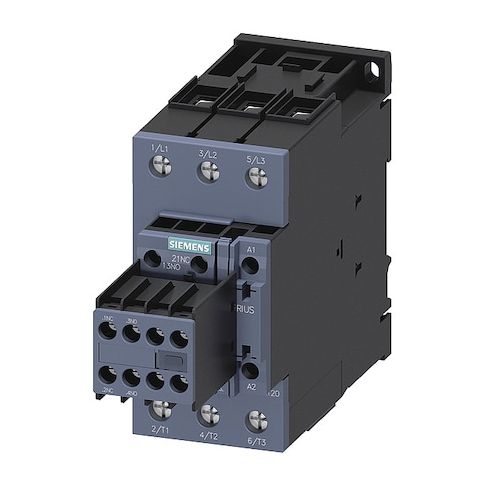

IEC Magnetic Contactor, 2NC/2NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20351AK64
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for a wide range of applications. Suitable for use in non-reversing circuits, this 3-pole contactor features a 110-120V AC coil and includes auxiliary contacts and main contacts for added functionality. Its compact S2 frame size and screw terminals make it easy to install and integrate into existing systems. Ideal for use in industrial control panels, motor control centers, and other applications where a high level of reliability and efficiency is required. Its robust design and long lifespan ensure minimal downtime and reduced maintenance costs.
Top product features:
- IEC Magnetic Contactor has 3-pole, non-reversing operation
- IEC Magnetic Contactor contains auxiliary contacts (2 NO/2 NC) and main contacts (normally open)
- IEC Magnetic Contactor is rated for operation within the specified voltage and frequency ranges
Top product applications:
- Motor Control and Protection
- Industrial Automation and Control Systems
- High-Reliability Power Distribution and Control
Siemens IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switching device with a 110–120 V AC coil. It contains auxiliary contacts (2 NO/2 NC) and main contacts (normally open) as specified. The unit uses screw terminals and belongs to the SIRIUS 3RT20 series with an S2 frame size. It is rated for operation within the specified voltage and frequency ranges and has an IP20 enclosure rating. Mounting options include DIN Rail or Surface with a vertical mounting orientation.
- Coil Voltage: 110–120 V AC
- - Poles/Contacts: 3-pole
- main contacts (normally open)
- auxiliary contacts: 2 NO/2 NC
- - Frame/Series: S2 frame
- SIRIUS 3RT20
- - Terminals: Screw
- - Max Voltage/Frequency: 690 V AC
- 50/60 Hz
- - IP Rating: IP20
- - Mounting: DIN Rail or Surface
- Vertical orientation
- - Mechanical Durability: approximately 10 million cycles under standard testing conditions
- - Full Load Amps: Inductive 41 A
- Resistive 60 A
- - Reversing Capability: Non-Reversing
- - HP Ratings: 3 hp @ 120 V
- 7.5 hp @ 240 V
- 10 hp @ 208 V
- 15 hp @ 240 V
- 30 hp @ 480 V
- 40 hp @ 575 V
- - Response Time: Typical opening and closing times based on standard testing procedures
- - Standards: REACH Art 33, WEEE (2012/19/EU)
- - Enclosure: No Enclosure
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.40
- Package Width: 5.40
- Package Height: 3.00
- Package Weight: 2.30
