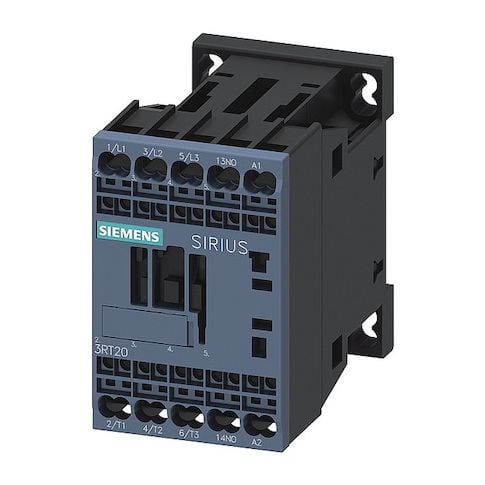

IEC Magnetic Contactor, 1NO, 220V-240V AC, 3 P, Non-Reversing, Spring Type MPN:3RT20152AP611AA0

• The Siemens IEC Magnetic Contactor is a 3-pole, non-reversing IEC magnetic contactor with a 220–240 V AC coil. It is part of the SIRIUS 3RT20 series (frame size S00) and includes one auxiliary contact in addition to three main contacts. The device uses a spring-type terminal connection and is configured for DIN rail or surface mounting. It is rated for operation within the specified voltage and frequency ranges, with IP20 protection rating

• no enclosure included.

  Key features

• - Coil voltage: 220–240 V AC
• - Poles and contacts: 3 poles
• 3 main contacts
• 1 auxiliary contact
• - Reversing: Non-Reversing
• - Frame/Series: S00 (SIRIUS 3RT20)
• - Mounting and connection: DIN Rail, Surface mounting
• Spring Type terminal connection
• - Enclosure and protection: IP20 protection rating
• no enclosure included
• - Electrical characteristics: 50/60 Hz
• Phase: Three
• Maximum voltage rating: 690 V AC
• - Durability and temps: Mechanical durability 30,000,000 cycles
• Operating temperature -13 °F to 140 °F
• - Dimensions: Overall 2.92 in depth x 3.08 in height x 1.97 in width (and corresponding metric sizes)
• - Power loss: 0.2 W (current dependent)
• 4.4 W (current independent)
