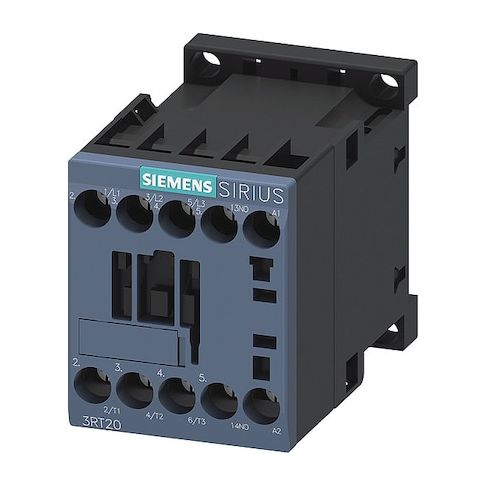

IEC Magnetic Contactor, 1NO, 110V AC, 3 P, Non-Reversing, Screw MPN:3RT20181AF01

• The IEC Magnetic Contactor is a 3-pole, non-reversing switching device from the SIRIUS 3RT20 family (frame size S00) with a 110 V AC coil. It includes a single normally open auxiliary contact (1NO) and uses screw terminals for wiring. Rated for use in IEC-standard control circuit applications and compatible with standard control panel configurations.

  - Auxiliary contacts: 1NO (1 normally open)

• - Auxiliary Contact Form: 1NO
• - Coil Voltage: 110 V AC
• - Contactor Style: IEC
• - Depth: 73 mm
• - Electrical Connection: Screws
• - Embedded Surge Suppressor: No
• - Frame / Series / Class / Code: S00 / SIRIUS 3RT20
• - Frame Size: S00
• - Frequency: 50/60 Hz
• - Full Load Amps - Inductive/Resistive: Rated for continuous operation at specified current ratings within the specified voltage ranges
• - Full Load Current - Inductive/Resistive: Rated for operation at the indicated current levels within the specified voltage ranges
• - HP @ Various Conditions: Power ratings are provided based on standard testing conditions
• actual performance may vary depending on application specifics
• - Height x Width x Depth (Overall): 3.08 in × 1.97 in × 2.45 in
• - Mounting Style: DIN Rail, Surface
• - Mounting Hole Diameter: 0.2 in
• - Mounting Hole Distance – Height: 1.97 in
• Width: 1.38 in
• - Mounting Position: Vertical
• - NEMA Enclosure Rating: No Enclosure
• - Phase: Three
• - IP Rating: IP20
• - Includes Auxiliary Contacts: Yes
• - Maximum Operating Voltage: Rated for operation up to 690 V AC under normal conditions
• - Standards: REACH Art 33, WEEE (2012/19/EU)
• - Terminal Connection Type: Screw
• - Mechanical Operating Durability: 30,000,000 cycles
• - Response Time: Opening and closing times are within typical operational parameters as per specifications
