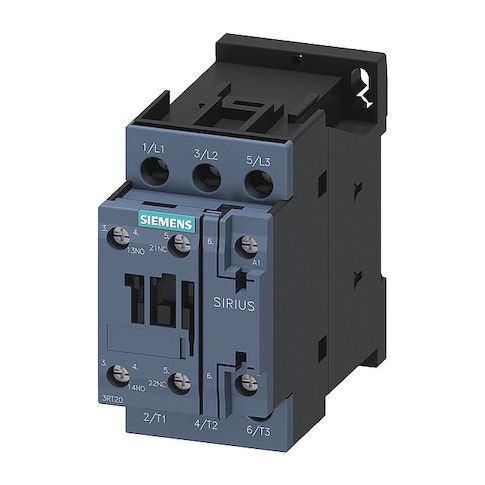

IEC Magnetic Contactor, 1NC/1NO, 480V AC, 3 P, Non-Reversing, Screw MPN:3RT20261AV60

• Siemens IEC Magnetic Contactor is a three-pole, non-reversing, electrically operated switching device rated for operation within IEC standards. It operates with a 480 V AC coil as specified to open or close its main contacts. It includes two auxiliary contacts (1NO/1NC). The unit is part of the SIRIUS 3RT20 family (frame size S0), features screw terminals, and supports DIN Rail or surface mounting in a vertical orientation. It is rated for operation at 60 Hz within specified parameters, rated for use up to 690 V AC under specified conditions, and has an IP20 enclosure rating.

  Key features

• - Coil voltage: 480 V AC
• - Auxiliary contacts: 2 total (1NO/1NC)
• - Reversing capability: Non-Reversing
• - Poles: 3
• Main contact arrangement includes 3 normally open main contacts
• - Frame size / Series: S0
• SIRIUS 3RT20
• - Mounting: DIN Rail, Surface
• Mounting position: Vertical
• - Electrical connection: Screws
• - Maximum voltage rating: 690 V AC
• - Frequency: 60 Hz
• - IP rating: IP20
• - Full Load Amps: Inductive 25 A
• Resistive 40 A
