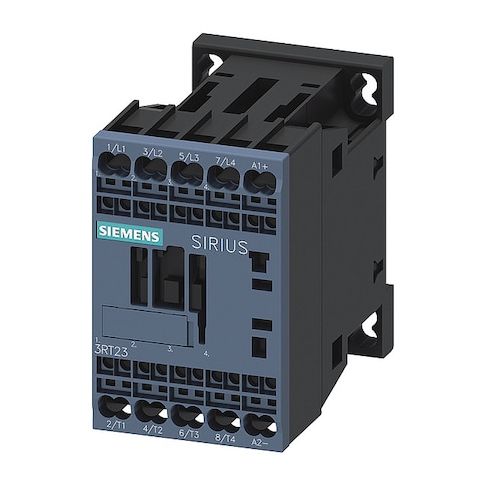

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 4 P, Non-Reversing, Spring Type MPN:3RT23162BB40
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient switching device designed for various industrial applications. Suitable for non-reversing applications, it features 4 poles and a 24V DC coil with a spring-type terminal connection. The unit includes 2NC/2NO auxiliary contacts, providing flexibility and versatility in control panel configurations. Its compact design and DIN Rail or surface mounting options make it ideal for use in control panels, machinery, and equipment. With a high operating durability and temperature range, this magnetic contactor is perfect for applications requiring consistent and reliable switching performance in a range of industrial settings.
Top product features:
- The Siemens IEC Magnetic Contactor features 4 poles, rated for non-reversing applications, and uses a 24 V DC coil with a spring-type terminal connection.
- The unit includes auxiliary contacts configured as 2NC/2NO (4 total), allowing for additional control and monitoring capabilities.
- The contactor is rated for operation up to 4 kW at specified voltages and load types, providing reliable performance in a variety of applications.
Top product applications:
- Industrial Automation
- Motor Control Centers
- Control Panels
The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within IEC standards. It features 4 poles, is rated for non-reversing applications, and uses a 24 V DC coil with a spring-type terminal connection. The unit includes auxiliary contacts configured as 2NC/2NO (4 total). It belongs to the SIRIUS 3RT23 family with frame size S00 and is compatible with standard control panel configurations.
- Coil Voltage: 24 V DC
- - Poles / Main contacts: 4 poles
- 4 normally open main contacts
- 0 normally closed main contacts
- - Auxiliary contacts: 4 total (2NC/2NO)
- - Reversing capability: rated for non-reversing applications
- - Frame / Series / Code: S00
- SIRIUS 3RT23
- - Mounting: Vertical
- DIN Rail, Surface
- - Terminal connection: Spring Type
- - IP Rating: IP20
- - Embedded Surge Suppressor: does not include an integrated surge suppressor
- - Dimensions (approx.): Depth 73 mm (1.7 in)
- Height 70 mm (2.85 in)
- Width 45 mm (1.77 in)
- Overall: Depth 1.7 in
- Height 2.85 in
- Width 3.15 in
- - NEMA Enclosure Rating: No Enclosure
- - Max Operating Watts: rated for operation up to 4 kW at specified voltages and load types
- - Full Load Amps: Inductive 18 A
- Resistive 18 A
- - Mechanical Operating Durability: specified mechanical durability under test conditions
- - Operating Temperature: Min -13 °F
- Max 140 °F
- - Includes Auxiliary Contacts: Yes
- - Number of Auxiliary Contacts: 4
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.90
- Package Height: 2.00
- Package Weight: 0.70
