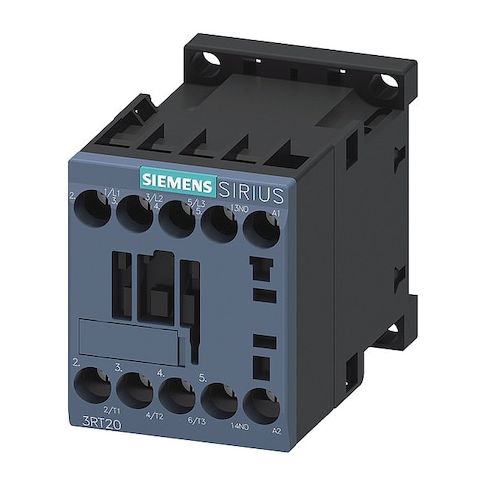

IEC Magnetic Contactor, 1NO, 110V-120V AC, 3 P, Non-Reversing, Screw MPN:3RT20181AK610UA0
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling three-phase power circuits. Suitable for use in a variety of applications, including industrial automation, motor control, and power distribution, this contactor provides a non-reversing, coil-operated switch with a high level of mechanical durability and a long lifespan. With a rating for operation within the 110-120V AC voltage range, it offers a high level of flexibility and adaptability to meet the needs of different industries and projects. Its compact design and easy mounting make it an ideal choice for a range of applications.
Top product features:
- The Siemens IEC Magnetic Contactor is a three-pole, non-reversing, coil-operated switch.
- It operates within a specified voltage range of 110–120 V AC.
- It features 1 normally open auxiliary contact.
Top product applications:
- Industrial Automation
- Motor Control
- Power Distribution
The Siemens IEC Magnetic Contactor is a three-pole, non-reversing, coil-operated switch (Series SIRIUS 3RT20, Frame Size S00) rated for operation within the specified voltage range.
- Coil Voltage: 110–120 V AC (Rated for operation within the specified voltage range)
- - Phase/Poles: Three-phase, 3 poles
- - Reversing Capability: Non-Reversing
- - Auxiliary Contacts: 1 NO
- - Main Contacts: 3 NO
- - Frame Size / Series: S00 / SIRIUS 3RT20
- - Electrical Connection: Screw terminals
- - Mounting Style: DIN Rail, Surface
- - IP Rating: IP20
- - Maximum Voltage Rating: 690 V AC (Rated for operation within the specified voltage range)
- - Full Load Amps: Inductive 18 A
- Resistive 22 A
- - Watts Loss: 1 W (Current Dependent)
- 5.9 W (Current Independent)
- - Mechanical Durability: 30,000,000 cycles
- - Temperature Range: -13 °F to 140 °F
- - Dimensions (W x H x D): 1.95 in × 2.40 in × 3.20 in
- - Mounting Hole Diameter: 0.20 in
- - Mounting Hole Distances (H x W): Height 1.97 in
- Width 1.38 in
- - Frequency Range: 50–60 Hz
- - Includes Auxiliary Contacts: Yes
- - NEMA Enclosure Rating: No Enclosure
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.42
- Package Width: 1.97
- Package Height: 3.05
- Package Weight: 0.51
