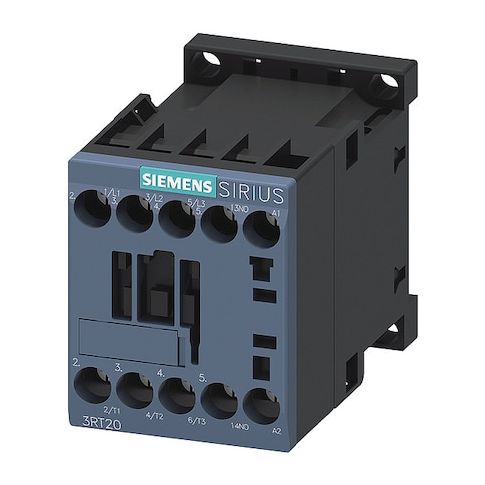

IEC Magnetic Contactor, 1NO, 230V AC, 3 P, Non-Reversing, Screw MPN:3RT20151AP01

• Siemens IEC Magnetic Contactor, 3-pole, non-reversing, with a 230 V AC coil and screw terminals. This IEC magnetic contactor is rated for use within specified industrial control environments and includes three normally open main contacts along with one normally open auxiliary contact. It is part of the SIRIUS 3RT20 family (frame size S00) and is compatible with DIN Rail and surface mounting methods.

  Key features

• - Coil voltage: 230 V AC
• - Poles / main contacts: 3 poles, 3 normally open
• - Auxiliary contacts: 1 normally open
• - Reversing: Non-Reversing
• - Frame/Series: SIRIUS 3RT20, Frame Size S00
• - Mounting and terminals: DIN Rail, Surface
• Screw terminals
• - Maximum voltage rating: rated for operation up to 690 V AC within specified parameters
• - Frequency: 50/60 Hz
• - IP rating: IP20
• - Mechanical durability: designed to withstand up to 30 million mechanical operations under normal conditions
• - Dimensions: Width 45 mm, Height 58 mm, Depth 73 mm
• - Operating temperature: rated for operation within the specified temperature range of -13°F to 140°F
• - Includes auxiliary contacts: Yes
• - Phase: Three
