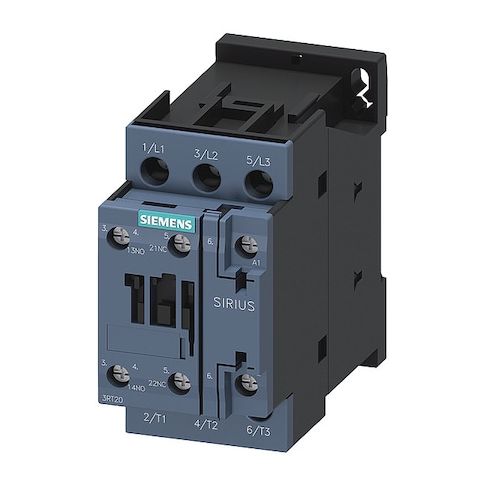

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 3 P, Non-Reversing, Screw MPN:3RT20261AB00
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling and signaling in various industrial applications. With its compact design and robust construction, it can be easily mounted on a DIN rail or surface, making it perfect for use in control panels, machines, and other equipment. The 3-pole, non-reversing design ensures safe and reliable operation, while the 1NO/1NC auxiliary contacts provide flexibility for signaling or control functions. Suitable for applications in industries such as manufacturing, automation, and energy, this magnetic contactor is a great addition to any control system, offering improved reliability, efficiency, and safety.
Top product features:
- IEC Magnetic Contactor is a 3-pole, non-reversing IEC-style magnetic switch with a 24 V AC coil.
- It includes two auxiliary contacts configured as 1 normally open and 1 normally closed (1NO/1NC) for signaling or control functions.
- The unit uses screw terminals for electrical connection.
Top product applications:
- Industrial Control Panel
- Automotive Control Systems
- Power Distribution Panels
Siemens IEC Magnetic Contactor is a 3-pole, non-reversing IEC-style magnetic switch with a 24 V AC coil. It includes two auxiliary contacts configured as 1 normally open and 1 normally closed (1NO/1NC) for signaling or control functions. The unit uses screw terminals and can be mounted on a DIN rail or a surface, in a compact frame size S0 (SIRIUS 3RT20).
- Coil voltage: 24 V AC
- - Poles: 3
- - Auxiliary contacts: 2 total (1NO/1NC)
- - Main contacts: 3 normally open
- - Reversing: Non-Reversing
- - Frame/Series/Code: S0, SIRIUS 3RT20
- - Frame Size: S0
- - Mounting style: DIN Rail, Surface
- - Electrical connection: Screw
- - Maximum voltage rating: 690 V AC
- - Frequency: 50 Hz
- - Phase: Three
- - IP rating: IP20
- - NEMA enclosure rating: No Enclosure
- - Overall dimensions (W x H x D): 2.1 in x 3.6 in x 4.15 in
- - Width: 45 mm
- - Mounting hole diameter: 0.19 in
- - Mounting hole distance (height): 2.36 in
- - Mounting hole distance (width): 1.38 in
- - Mechanical durability: tested to a specified number of cycles under standard conditions (note: actual performance may vary)
- - Power consumption: ratings are provided based on typical operating conditions
- actual values may vary depending on usage
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.62
- Package Width: 2.13
- Package Height: 4.15
- Package Weight: 0.91
