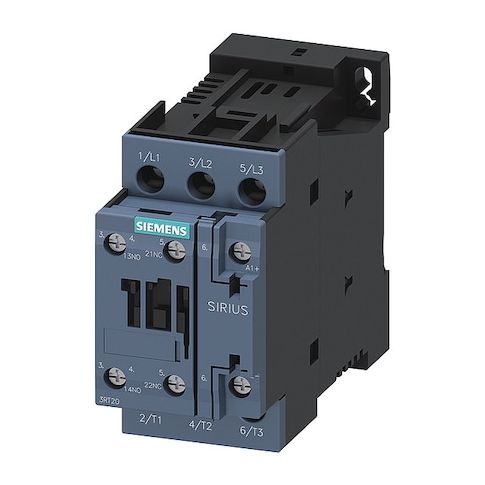

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20261KB40
Free Shipping
In Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for controlling electrical loads in a variety of applications. Suitable for use in industrial settings, this three-pole contactor can handle inductive loads up to 25A and resistive loads up to 40A, with a maximum operating wattage of 11kW at 400V AC-3. Its compact design and DIN Rail or surface mounting style make it easy to install in tight spaces, while its vertical positioning capability allows for flexible placement. Ideal for use in HVAC, lighting, and motor control applications, this contactor offers a high level of reliability and performance in demanding environments.
Top product features:
- Non-reversing operation allows the contactor to control the flow of power in one direction only.
- Three-pole configuration enables the contactor to control two separate circuits.
- One normally open and one normally closed auxiliary contact provides additional switching functionality.
Top product applications:
- Industrial Automation
- Control Panels
- Relay Systems
The SIEMENS - IEC Magnetic Contactor is a non-reversing, three-pole contactor with a coil voltage of 24V DC. It features an auxiliary contact configuration of 1NO/1NC and has an electrical connection via screws. The device comes in the S0 frame size and includes auxiliary contacts. With its DIN Rail or surface mounting style, it can be positioned vertically for installation. This magnetic contactor operates at maximum operating watts of 11 kW (at 400V, AC-3) and 23 kW (at 400V, AC-1), while having a maximum voltage rating of up to 690V AC.
Key Features:
- - Auxiliary Contact Form: Comes with one normally open (NO) and one normally closed (NC) auxiliary contact.
- - Coil Voltage: Operates on a coil voltage of 24 V DC.
- - Full Load Amps: Rated for operation with inductive loads up to 25 A and resistive loads up to 40 A.
- - Horsepower Ratings: Horsepower compatibility varies based on phase and voltage
- ranges from a minimum of two horsepower at single-phase,120V AC to a maximum of twenty horsepower at three-phase,600V AC.
- - Operating Temperature Range: Operates within the specified temperature range of -13 Degrees F minimum to140 Degrees F maximum.
- - Mounting Style & Position: Compatible with both DIN Rail or surface mounting styles
- suitable for vertical positioning.
- - Standards Compliance: Complies with REACH Art33 standards and WEEE(2012/19/EU).
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.62
- Package Width: 2.13
- Package Height: 4.55
- Package Weight: 1.30
