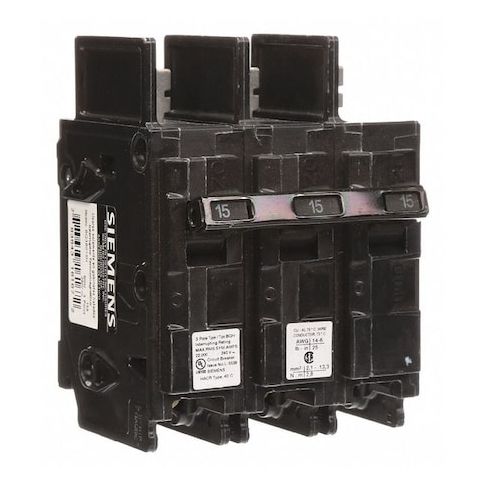

Miniature Circuit Breaker, BQH Series, 15A, 3 Pole, 240V AC, 22kA at 240V AC MPN:BQ3B015H
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1423186
Miniature Circuit Breaker, BQH Series, 15A, 3 Pole, 240V AC, 22kA at 240V AC
Protect your electrical systems with the Siemens BQH Series 15A 3-Pole Miniature Circuit Breaker, designed for high interrupting capacity and reliable performance. Suitable for use with Siemens panelboards, this circuit breaker provides a safe and efficient way to manage electrical loads in a variety of applications, including commercial and industrial settings. Its compact design and easy installation make it an ideal choice for new construction or retrofit projects. With a maximum operating temperature of 104°F and a minimum wire size of 12 AWG (Al) or 14 AWG (Cu), this circuit breaker offers a reliable solution for electrical system protection and management.
Top product features:
- Breaks circuit in case of overload or short circuit to prevent electrical shock or fire
- Protects against high interrupting capacity up to 22kA at 240V AC
- Mounts to panelboards using bolt-on style for secure installation
Top product applications:
- Panelboards
- Industrial Control Panels
- Commercial Electrical Distribution Systems
Miniature Circuit Breaker, Amps 15 A, AC Voltage Rating 240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Three, Series BQH, Max. AIR Rating 22kA at 240V AC, For Use With Siemens Panelboards, Terminal Connection Lug, Frame Size 125A/BQH, Length 3 in, Width 3 in, Depth 4 in, Max. Operating Temp. 104 Degrees F, Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.00
- Package Height: 3.00
- Package Weight: 0.96
Product info last updated on February 24, 2026 11:05pm UTC
Category: Circuit Protection
