Miniature Circuit Breaker, BQH Series, 35A, 3 Pole, 240V AC, 22kA at 240V AC MPN:BQ3B035H
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1349686
Miniature Circuit Breaker, BQH Series, 35A, 3 Pole, 240V AC, 22kA at 240V AC

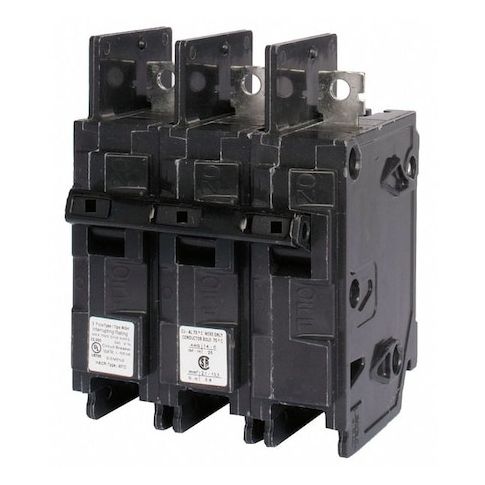

The Siemens BQH Series 35A 3 Pole Miniature Circuit Breaker is a reliable and efficient solution for protecting your electrical panelboards. Designed for use in Siemens panelboards, this circuit breaker provides high interrupting capacity and is rated for 240V AC. Its compact size and bolt-on mounting style make it easy to install and maintain. With a maximum operating temperature of 104°F and a minimum wire size of 12 AWG (Al) or 14 AWG (Cu), this circuit breaker is suitable for a variety of applications, including commercial and industrial settings, where it can help prevent electrical fires and ensure safe operation.
Top product features:
- Three-pole design for three-phase applications
- High interrupting capacity of 22kA at 240V AC for reliable protection
- Toggle actuator for easy and accessible operation
Top product applications:
- Commercial Building Electrical Systems
- Industrial Electrical Systems
- Data Center Electrical Systems
Miniature Circuit Breaker, Amps 35 A, AC Voltage Rating 240V AC, Circuit Breaker Type High Interrupting Capacity, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Three, Series BQH, Max. AIR Rating 22kA at 240V AC, For Use With Siemens Panelboards, Terminal Connection Lug, Frame Size 125A/BQH, Length 3 in, Width 3 in, Depth 3 in, Max. Operating Temp. 104 Degrees F, Min. Wire Size 12 AWG (Al), 14 AWG (Cu)
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.90
- Package Height: 2.90
- Package Weight: 0.95
Product info last updated on January 10, 2026 6:02pm UTC
Category: Circuit Protection
