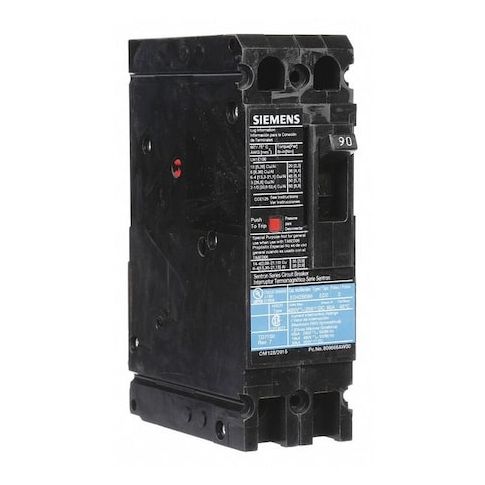

Molded Case Circuit Breaker, ED4 Series, 90A, 2 Pole, 480V AC, 18kA at 480V AC MPN:ED42B090
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1110103
Molded Case Circuit Breaker, ED4 Series, 90A, 2 Pole, 480V AC, 18kA at 480V AC
Protect your high-voltage electrical systems with the Siemens ED4 Series 90A Molded Case Circuit Breaker. Designed for use with SB switchboards and Sentron panelboards, this circuit breaker offers a high amp trip setting of 90A, ensuring reliable and efficient protection against overcurrents. Its thermal magnetic trip type provides fast and accurate detection of faults, while its 18kA at 480V AC maximum air rating ensures it can handle the most demanding applications. Ideal for use in commercial and industrial settings, this circuit breaker is a critical component in maintaining safe and reliable electrical systems.
Top product features:
- 90A amp trip setting for high amp conditions
- Thermal magnetic trip type for reliable circuit interruption
- 2 pole design for single-phase applications
Top product applications:
- SB Switchboards
- Sentron Panelboards
- Industrial control systems
Molded Case Circuit Breaker, 90 A Amps, AC Voltage Rating 480V AC, Max. AIR Rating 18kA at 480V AC, For Use With SB Switchboards, Sentron Panelboards, Series ED4, High Amp Trip Setting 90 A, Low Amp Trip Setting 90 A, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 250V DC, Terminal Connection Load Side Lug, Trip Type Thermal Magnetic, Phase Single, Instantaneous Trip Fixed, Phase Connection Any, Frame Size 125A/ED, Circuit Breaker Mounting Style Lug In Panelboard
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 2.80
- Package Height: 5.50
- Package Weight: 2.61
Product info last updated on January 15, 2026 4:19am UTC
Category: Circuit Protection
