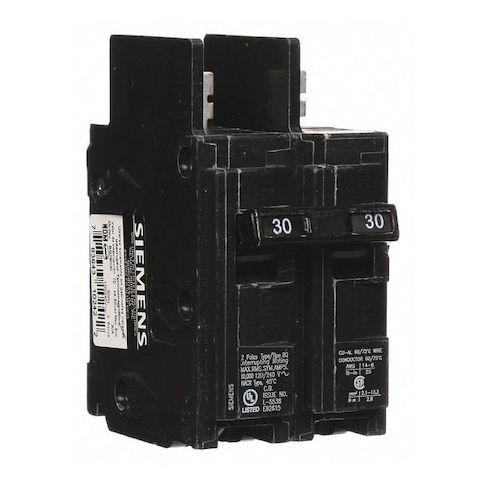

Miniature Circuit Breaker, BQ Series, 30A, 2 Pole, 120/240V AC, 10kA at 120/240V AC MPN:BQ2B030
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0931402
Miniature Circuit Breaker, BQ Series, 30A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
Protect your electrical system with the Siemens BQ Series 30A Miniature Circuit Breaker. This reliable device safeguards your circuit from overloads and short circuits, ensuring a safe and efficient operation. Suitable for use with Siemens panelboards, it provides a maximum air rating of 10kA at 120/240V AC. Easy to install with a bolt-on mounting style, it's ideal for applications such as residential and commercial buildings, data centers, and industrial settings. With a compact size of 2 x 3 x 4 inches, it's a space-saving solution for your electrical panel. Trust Siemens for reliable circuit protection.
Top product features:
- Amp rating of 30A allows for the protection of circuits with moderate power requirements.
- Breaks at 10kA to prevent damage from high-voltage surges.
- Two-pole design allows for the control of two separate circuits from a single device.
Top product applications:
- Industrial control panels
- Electrical distribution boards
- Commercial building electrical systems
Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Single, Series BQ, Max. AIR Rating 10kA at 120/240V AC, For Use With Siemens Panelboards, Terminal Connection Lug, Frame Size 125A/BQ, Length 2 in, Width 3 in, Depth 4 in, Max. Operating Temp. 104 Degrees F, Min. Wire Size 12 AWG (Al), 14 AWG (Cu), Max. Wire Size 6 AWG
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 2.00
- Package Height: 3.10
- Package Weight: 0.66
Product info last updated on February 1, 2026 8:47am UTC
Category: Circuit Protection
