Electric Actuator, 62 in.-lb., Modulating MPN:GMA161.1P
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0861253
Electric Actuator, 62 in.-lb., Modulating

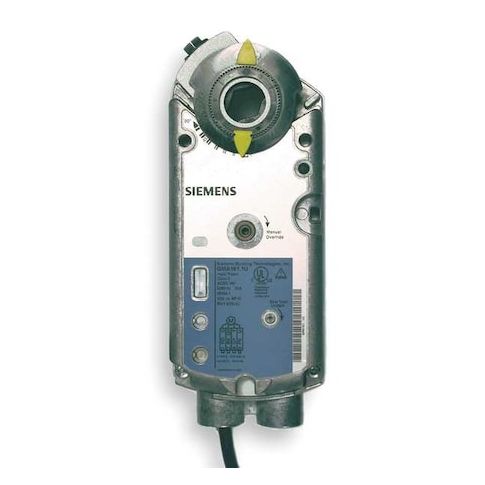

This electric actuator from Siemens is designed for use in building automation systems, offering a reliable and efficient solution for modulating valve applications. With a rated torque of 62 in-lb and a spring return feature, it provides smooth and precise control over damper movement. The actuator's proportional signal type and 0-10V DC output signal make it compatible with a wide range of building automation systems. Its compact design and self-centering shaft coupling enable easy installation and maintenance. Suitable for applications such as HVAC control, the actuator's durable construction and NEMA rating 1 ensure long-lasting performance in harsh environments.
Top product features:
- Modulating capability for proportional signal type control
- Self-centering shaft coupling for precise positioning and reduced wear
- Spring return mechanism for automatic reset to original position
Top product applications:
- Building Automation System
- Valve Application Damper
- Modulating Control
Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 62 in-lb, Input Voltage 24V AC/DC, Output Signal 0 to 10V DC, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 1, IP Rating IP54, Spring Return Spring Return, Time to Close 15 sec, Shaft Type Self-Centering Shaft Coupling, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 5.40
- Package Height: 3.90
- Package Weight: 3.21
Product info last updated on May 5, 2026 4:57pm UTC
Category: HVACR and Appliance Controls
