Miniature Circuit Breaker, BL Series, 80A, 3 Pole, 120/240V AC, 22kA at 240V AC MPN:B380H00S01
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0777524

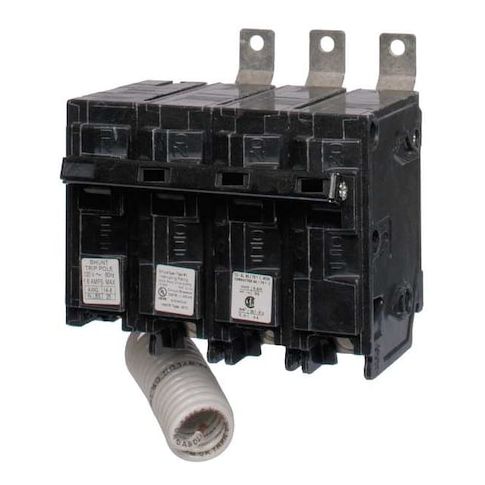

Miniature Circuit Breaker, BL Series, 80A, 3 Pole, 120/240V AC, 22kA at 240V AC
Protect your Siemens P1 panelboards with the reliable BL Series Miniature Circuit Breaker. This 3-pole, 80A circuit breaker is designed for use in 120/240V AC applications and offers a maximum short-circuit current rating of 22kA at 240V AC. With a shunt trip mechanism and toggle actuator, this circuit breaker provides easy installation and operation. Ideal for use in commercial and industrial settings, the BL Series Miniature Circuit Breaker helps ensure safe and efficient electrical distribution. Its compact design and bolt-on mounting style make it easy to integrate into your existing panelboard setup.
Top product features:
- Protects against electrical overloads with a maximum air rating of 22kA at 240V AC
- Trips automatically in the event of a short circuit or overload
- Mounts securely to a panelboard or load center via bolt-on installation
Top product applications:
- Industrial electrical panelboards
- Commercial electrical panelboards
- Residential electrical panelboards
Miniature Circuit Breaker, Amps 80 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Shunt Trip, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Compatible Panelboard/Load Center Series P1, Phase Three, Series BL, Max. AIR Rating 22kA at 240V AC, For Use With Siemens P1 Panelboards, Terminal Connection Lug, Frame Size 125A/BLH, Length 4 in, Width 4 in, Depth 6 in, Min. Wire Size 2 AWG (Al), 4 AWG (Cu)
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 3.60
- Package Height: 1.40
- Package Weight: 0.40
Product info last updated on February 16, 2026 7:08pm UTC
Category: Circuit Protection
