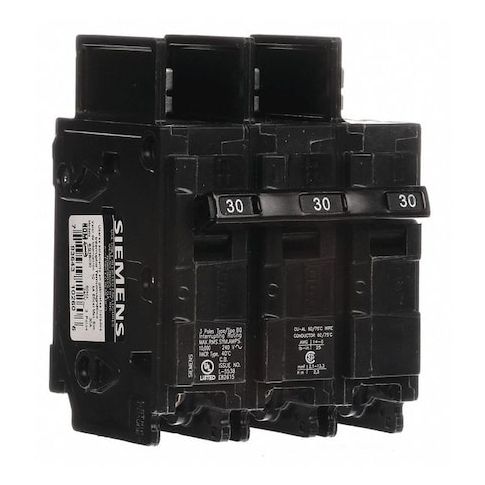

Miniature Circuit Breaker, BQ Series, 30A, 3 Pole, 240V AC, 10kA at 240V AC MPN:BQ3B030
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0604825
Miniature Circuit Breaker, BQ Series, 30A, 3 Pole, 240V AC, 10kA at 240V AC
Protect your electrical system with the Siemens BQ Series 30A 3-Pole Miniature Circuit Breaker. Designed for use with Siemens panelboards, this circuit breaker provides reliable protection against overloads and short circuits. With a 10kA maximum air rating at 240V AC, it meets the highest standards for safety and performance. Suitable for a variety of applications, including residential and commercial electrical systems, this circuit breaker offers a convenient bolt-on mounting style and toggle actuator. Its compact 3x3x4 inch design makes it easy to install and maintain, ensuring a safe and efficient electrical system.
Top product features:
- Breaks circuit in the event of an overload or short circuit
- Has a maximum operating temperature of 104 degrees Fahrenheit
- Can be mounted using a bolt-on style
Top product applications:
- Industrial electrical panelboards
- Commercial electrical panelboards
- Data center electrical panelboards
Miniature Circuit Breaker, Amps 30 A, AC Voltage Rating 240V AC, Circuit Breaker Type Standard, Number of Poles 3, DC Voltage Rating Not Rated, Circuit Breaker Actuator Toggle, Circuit Breaker Mounting Style Bolt On, Phase Three, Series BQ, Max. AIR Rating 10kA at 240V AC, For Use With Siemens Panelboards, Terminal Connection Lug, Frame Size 125A/BQ, Length 3 in, Width 3 in, Depth 4 in, Max. Operating Temp. 104 Degrees F, Min. Wire Size 12 AWG (Al), 14 AWG (Cu), Max. Wire Size 6 AWG
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.00
- Package Height: 3.10
- Package Weight: 0.93
Product info last updated on January 15, 2026 7:59am UTC
Category: Circuit Protection
