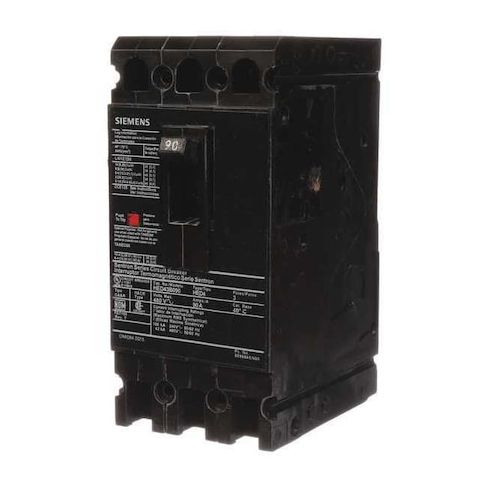

Molded Case Circuit Breaker, HED4 Series, 90A, 3 Pole, 480V AC, 42kA at 480V AC MPN:HED43B090
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0399174
Molded Case Circuit Breaker, HED4 Series, 90A, 3 Pole, 480V AC, 42kA at 480V AC
Protect your high-voltage electrical systems with the Siemens HED4 Series Molded Case Circuit Breaker. Rated for 90A and 480V AC, this three-pole circuit breaker provides high interrupting capacity and is designed for use with SB switchboards and Sentron panelboards. Its thermal magnetic trip type ensures reliable and efficient protection against overloads and short circuits. Ideal for industrial and commercial applications, this circuit breaker offers high amp trip settings and is easy to install, making it a reliable and efficient solution for your electrical needs.
Top product features:
- High Interrupting Capacity
- Thermal Magnetic Trip Type
- Instantaneous Trip Fixed for Phase Three
Top product applications:
- Industrial Panelboards
- Switchgear and Switchboards
- High-Amp Distribution Systems
Molded Case Circuit Breaker, 90 A Amps, AC Voltage Rating 480V AC, Max. AIR Rating 42kA at 480V AC, For Use With SB Switchboards, Sentron Panelboards, Series HED4, High Amp Trip Setting 90 A, Low Amp Trip Setting 90 A, Circuit Breaker Type High Interrupting Capacity, Number of Poles 3, DC Voltage Rating Not Rated, Terminal Connection Load Side Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Fixed, Phase Connection ABC, Frame Size 125A/ED
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 3.80
- Package Height: 5.60
- Package Weight: 3.65
Product info last updated on January 15, 2026 7:46am UTC
Category: Circuit Protection
