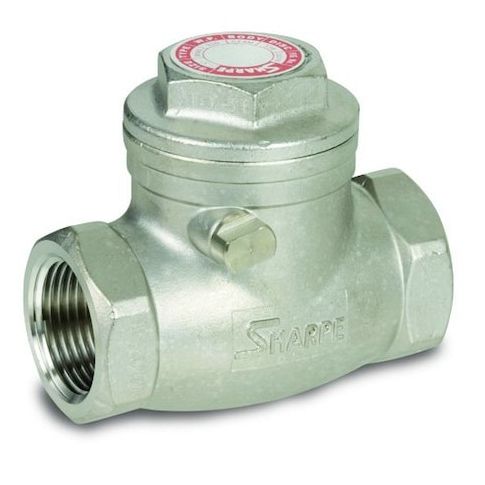

Check Valve, Series 2027, Inline Swing, 1 1/2 in NPSM FNPT x FNPT, 316 Stainless Steel MPN:4371000560
The Sharpe Check Valve is a reliable and durable solution for process piping applications. Designed for use in corrosive, flammable, and toxic environments, this valve features a stainless steel body and PTFE seal for maximum resistance to chemical damage. With a maximum temperature rating of 350°F and a maximum steam pressure of 125 psi, this valve can withstand even the most demanding conditions. Its inline swing design allows for easy installation and maintenance, making it an ideal choice for applications such as chemical processing, oil and gas, and pharmaceutical production.
Top product features:
- Flow Design Single
- Inline Swing Mechanism
- PTFE Seal Material
Top product applications:
- Corrosives
- Flammable
- Toxic
SHARPE 4371000560 is an inline swing check valve with an inline swing check design for one-direction flow applications. It features a 316 stainless steel body, a 316 stainless steel check mechanism, a PTFE seal, and a metal seat. This 2-way valve is rated for steam service and is specified for process piping applications involving compatible corrosive, flammable, or toxic media within the valve’s listed materials and ratings.
Key Features:
- Nominal valve size: 1 1/2 in
- Pipe or tube size: 1 1/2 in
- Connection type: Threaded x Threaded
- Side 1 connection: Female NPSM
- Side 2 connection: Female NPSM
- Mechanism and body design: Inline swing
- Body material: 316 stainless steel
- Check mechanism material: 316 stainless steel
- Seal material: PTFE
- Seat material: Metal
- Maximum steam pressure: 125 psi WSP
- Maximum operating temperature: 350 degrees F
- Mounting orientation: Horizontal or vertical
- Overall length: 4.68 in
- Cap to inlet center: 2.89 in
- Height, cap to inlet center: 2 7/8 in
- Valve ways: 2-way
- Valve series: 2027
- Standards: MSS SP-110
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.50
- Package Height: 2.90
- Package Weight: 3.30
