Check Valve, Series 2027, Inline Swing, 1-1/2 in, Socket Weld x Socket Weld, 316 Stainless Steel MPN:4371000360
Check Valve, Series 2027, Inline Swing, 1-1/2 in, Socket Weld x Socket Weld, 316 Stainless Steel

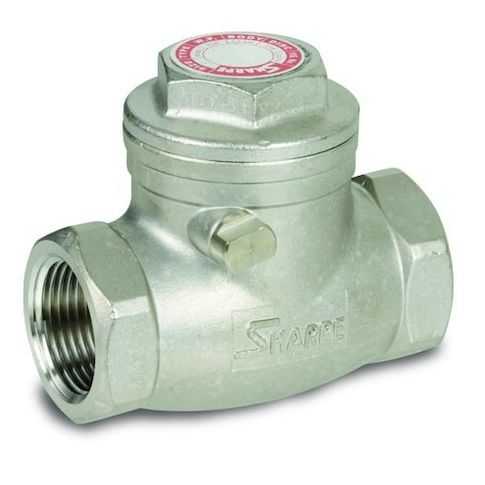

SHARPE 4371000360 is a 1-1/2 in check valve with an inline swing design. It is designed for directional flow and reverse-flow checking. The valve features a 316 stainless steel body and check mechanism, a PTFE seal, and a metal seat. It is rated for steam service and is listed for process piping applications involving corrosives, flammable media, and toxic media
- confirm media compatibility with system requirements before use.
Key Features:
- Inline swing check valve designed for directional flow control
- 1-1/2 in nominal valve size with 1-1/2 in female connections on both sides
- Connection information: NPSM
- Socket Weld x Socket Weld listed in supplier specifications
- Body material: 316 stainless steel
- Check mechanism material: 316 stainless steel
- Seal material: PTFE
- Seat material: Metal
- Maximum operating temperature: 350 Degrees F
- Maximum steam pressure: 125 psi WSP
- Mounting orientation: Horizontal or vertical
- Valve body style: Inline
- Valve ways: 2-way
- Overall length: 4.68 in
- Cap to inlet center: 2.89 in
- Height, cap to inlet center: 2-7/8 in
- Standard: MSS SP-110
- Valve series: 2027
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.55
- Package Width: 3.47
- Package Height: 2.47
- Package Weight: 3.30
