Check Valve, Series 25, Swing, 3 in, Flanged x Flanged, CF8M Stainless Steel

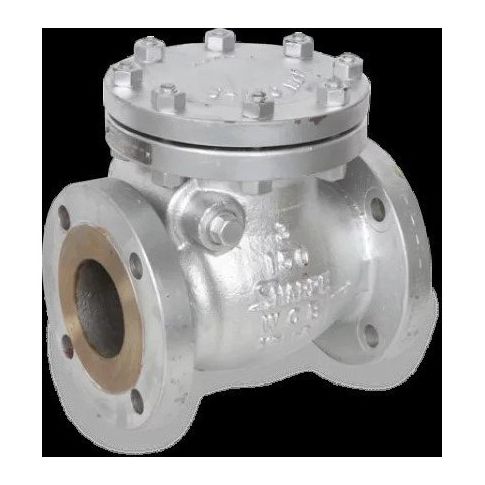

SHARPE 4371002750 is a 3 in inline check valve with a swing mechanism that allows one-way flow and closes to help reduce reverse flow. It features a CF8M stainless steel body, 3 in flanged female connections on both ends, and is specified for use with noncorrosive media, oil, pipeline service, steam, and water. The valve can be mounted horizontally or vertically and has a cracking pressure of 0.03 psi.
Key Features:
- Valve type: 2-way, single-flow check valve with swing mechanism and inline body style
- Body material: CF8M stainless steel
- Check mechanism material: 316 stainless steel
- Seat material: Metal
- Seal material: 410 stainless steel
- Connections: 3 in flanged x flanged, female on both sides
- Pressure rating: 440 psi maximum operating pressure
- 440 psi maximum water pressure
- Temperature rating: 650 degrees F maximum operating temperature
- Mounting orientation: Horizontal or vertical
- Overall length: 12.52 in
- Standard: ASME B16.34
- Check type: silent check
- Valve series: 25
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.52
- Package Width: 8.25
- Package Height: 10.18
- Package Weight: 55.40
