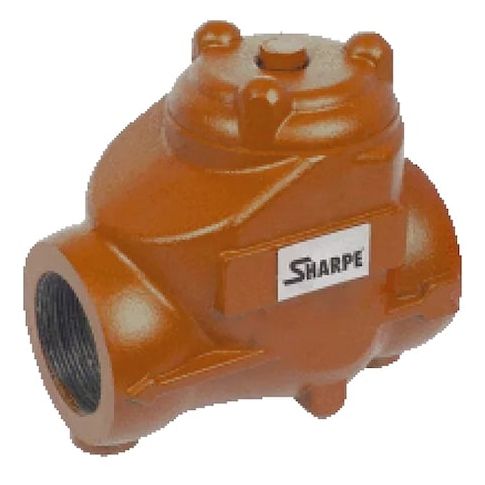

Check Valve, OP20 Series, Inline Swing, 2 in, FNPSM, Ductile Iron Body MPN:4353014060
Check Valve, OP20 Series, Inline Swing, 2 in, FNPSM, Ductile Iron Body
SHARPE OP20 is a 2 in threaded check valve with an inline swing design configured for one-direction flow and closure against reverse flow. It is designed for oil service in oil patch applications and features a ductile iron body, 316 stainless steel check mechanism, rubber seat, and FKM seal. Full-flow design: Yes. Rated for horizontal or vertical mounting.
Key Features:
- Valve type: Check valve with single-flow, 2-way operation
- Mechanism and body design: Inline swing
- Body material: Ductile iron
- Check mechanism material: 316 stainless steel
- Connection size: 2 in on both sides
- Connection type: Female NPSM threaded on both sides
- Pressure rating: 600 psi maximum operating pressure
- Maximum temperature: 280 degrees F
- For media: Oil
- Mounting orientation: Horizontal, vertical
- Full flow: Yes
- Standards: NACE MR0175
- Overall length: 6.3 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 4.00
- Package Height: 5.05
- Package Weight: 11.70
Product info last updated on February 28, 2026 6:04pm UTC
Category: Pipes, Valves and Fittings
