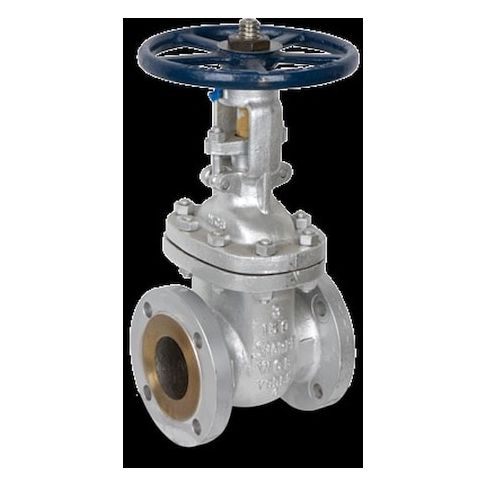

Gate Valve, 8", CF8M SS, Flange MPN:4371004900
Gate Valve, 8", CF8M SS, Flange
The Sharpe 8in CF8M Stainless Steel Gate Valve is a reliable and efficient solution for media water applications. With a maximum operating pressure of 275 psi, this valve is designed to withstand harsh environments while providing smooth and precise control. The stainless steel construction ensures durability and resistance to corrosion, making it ideal for use in chemical processing, power generation, and other industrial settings. Its compact design and bolted bonnet style also make it easy to install and maintain, reducing downtime and increasing overall productivity.
Top product features:
- Rising stem design allows for easy manual operation and reduces wear on the valve
- Wedge style flexible design provides a tight seal and allows for some flexibility in the valve
- 316 Stainless Steel stem material provides high corrosion resistance and durability
Top product applications:
- Water treatment plants
- Industrial process control systems
- Power generation plants
This Sharpe gate valve is an 8 in nominal size, Class 150 flanged valve (150# flange connection, ANSI Flange Class 150) with a CF8M stainless steel body, bonnet, and wedge. It has a rising stem (316 stainless steel), flexible wedge style, RPTFE seal, stainless steel seat, and a bolted bonnet with 8 flange bolt holes on each side. Maximum operating pressure is 275 psi (CWP), with an operating temperature range of -20°F to 450°F. It's rated for water media. The valve is operated via a wheel handle (ductile iron), with an inlet-to-outlet length of 11-1/2 in and a handle diameter of 13.78 in. The valve is certified to API 598, API 603, and ASME B16.34 standards. Manufactured in China. Specifications Nominal Valve Size: 8 in | Connection Type: 150# Flanged (Both Sides) | Valve/ANSI Flange Class: 150 Body/Bonnet/Wedge Material: CF8M Stainless Steel | Stem Material: 316 Stainless Steel Stem Type: Rising | Wedge Style: Flexible | Seal Material: RPTFE | Seat Material: Stainless Steel Bonnet Style: Bolted | Number of Flange Bolt Holes: 8 (per side) Max. Operating Pressure (CWP): 275 psi Operating Temperature Range: -20°F to 450°F For Media: Water Handle Type: Wheel | Handle Material: Ductile Iron | Handle Diameter: 13.78 in Inlet to Outlet Length: 11-1/2 in Standards: API 598, API 603, ASME B16.34
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.78
- Package Width: 13.78
- Package Height: 41.80
- Package Weight: 197.30
Product info last updated on February 20, 2026 2:44am UTC
Category: Pipes, Valves and Fittings
