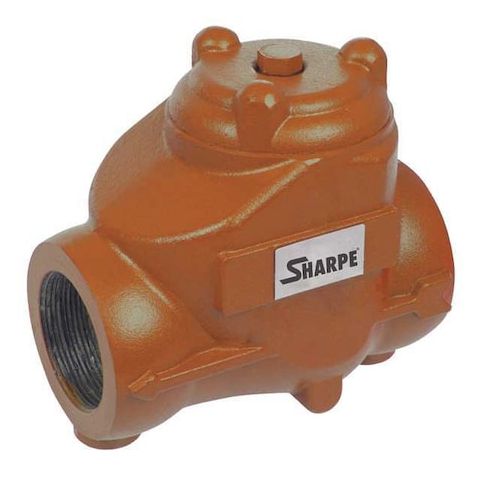

3" FNPT Carbon Steel Oil Patch Swing Check Valve MPN:4353013740
The Sharpe 3in FNPT Carbon Steel Oil Patch Swing Check Valve is a reliable and efficient solution for oil and gas applications, including hydraulic systems and pipelines. Its single-flow design and inline swing mechanism ensure smooth operation and prevent backflow, while its carbon steel construction and Viton seals provide durability and resistance to high temperatures and pressures. With a maximum water pressure of 3,000 psi and a flow rate of 225 gpm, this valve is ideal for use in a variety of industries, including oil and gas, power generation, and chemical processing. It ships in 10 days.
Top product features:
- Carbon steel construction provides durability and resistance to corrosion.
- Viton seals ensure a tight shut-off and prevent leakage.
- The valve features a full-flow design, allowing for unobstructed flow when fully open.
Top product applications:
- Industrial Process Control Systems
- Oil and Gas Production and Transportation
- Power Generation and Distribution
SHARPE 4353013740 is a 3 in oil patch swing check valve with an inline body design for one-way flow applications in oil service and applications compatible with the listed media, materials, pressure, and temperature specifications. It uses a swing check mechanism that opens with forward flow and closes to help limit reverse flow. The carbon steel body, 316 stainless steel check mechanism, and full-flow design are specified for use within the listed pressure, temperature, and media ratings.
Key Features:
- 3 in nominal valve size with FNPT x FNPT female connections
- Inline swing check design with horizontal mounting orientation
- Carbon steel body with 316 stainless steel check mechanism
- Media: Oil
- Cracking pressure: 0 psi
- Flow rate: 225 gpm
- Full-flow design
- Seal material: FKM
- seat material: verify supplier specification before publication
- Operating temperature range: 0 degrees F to 280 degrees F
- Maximum operating pressure: verify supplier specification before publication
- Maximum water pressure: 3000 psi at 225 degrees F
- Overall length: 8.75 in
- Standards: NACE MR0175, NACE MR0175-2009
- Valve series: OP20
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 9.90
- Package Height: 9.60
- Package Weight: 31.85
