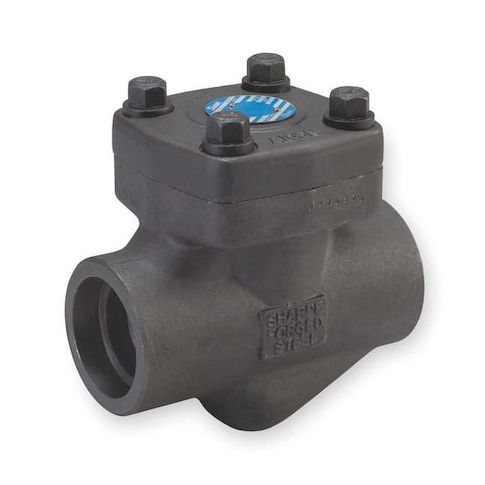

3/4" Socket Forged Carbon Steel Piston Check Valve MPN:4371001380
The Sharpe 3/4in Socket Forged Carbon Steel Piston Check Valve is a robust and reliable solution for various industrial and commercial applications. Suitable for use in high-temperature environments, this valve can withstand temperatures up to 800 Degrees F, making it ideal for steam and water systems. Its carbon steel body and 304 stainless steel seal ensure durability and resistance to corrosion. The valve's inline piston design and single-flow design provide efficient control over fluid flow, while its 8 psi cracking pressure ensures smooth operation. Perfect for use in HVAC systems, power plants, and chemical processing facilities.
Top product features:
- Forged carbon steel construction provides durability and resistance to corrosion
- Piston design allows for reliable shut-off and control of fluid flow
- Stellite seat material ensures long-lasting wear resistance and sealing performance
Top product applications:
- Industrial piping systems
- Steam power generation systems
- Water treatment plants
SHARPE VALVES 4371001380 is a 3/4 in. piston check valve with a forged carbon steel inline body and socket x socket connections. It is specified for steam and water service and features a one-direction flow design with 8 psi cracking pressure. This horizontal-mount valve has pressure ratings including 2,000 psi at 100 Degrees F for water and 800 psi WSP for steam.
Key Features:
- Inline piston check valve with one-direction flow path
- 3/4 in. nominal valve size with 3/4 in. pipe size and 3/4 in. connection size on both ends
- Forged carbon steel body
- Female socket x socket ends
- 316 stainless steel piston with 316 stainless steel spring
- 304 stainless steel and graphite seal with Stellite seat
- Cv 3 flow rating with 10 gpm flow
- Pressure ratings: 2,000 psi at 100 Degrees F for water, 800 psi WSP for steam, and 1,975 psi maximum operating pressure
- Temperature range: 0 to 800 Degrees F
- Horizontal mounting orientation
- Standards: API 598, API 602 (9th Edition), ASME B16.34, ASME B16.11, NACE MR-01-75
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.50
- Package Height: 3.80
- Package Weight: 3.33
