Check Valve, 2027 Series, Inline Swing, 1/4 in, Socket Weld x Socket Weld, 316 Stainless Steel MPN:4371000350
Check Valve, 2027 Series, Inline Swing, 1/4 in, Socket Weld x Socket Weld, 316 Stainless Steel

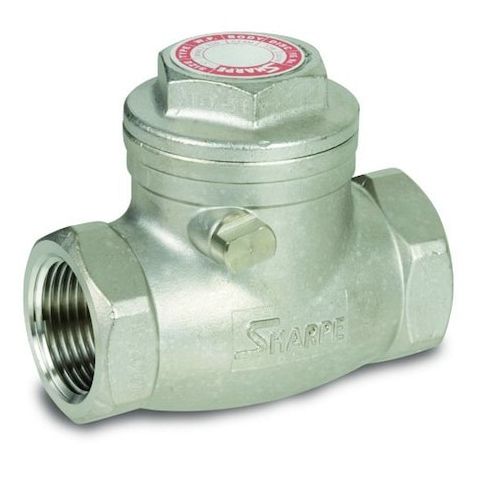

SHARPE 4371000350 is an inline swing check valve that uses an inline swing check mechanism for one-direction flow. This 2-way valve features a 316 stainless steel body and check mechanism, along with a PTFE seal and metal seat. It is rated for steam service.
Key Features:
- Nominal valve size: 1/4 in
- Connection type: Socket Weld x Socket Weld
- Side 1 connection: 1/4 in female NPSM
- Side 2 connection: 1/4 in female NPSM
- Mechanism and body design: Inline swing
- Flow design: Single
- Body material: 316 stainless steel
- Check mechanism material: 316 stainless steel
- Seal material: PTFE
- Seat material: Metal
- Media: Steam
- Maximum steam pressure: 125 psi WSP
- Maximum operating temperature: 350 degrees F
- Mounting orientation: Horizontal, vertical
- Overall length: 4 3/32 in
- Standard: MSS SP-110
- Valve series: 2027
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.19
- Package Width: 3.19
- Package Height: 2.25
- Package Weight: 2.40
Product info last updated on March 28, 2026 4:30pm UTC
Category: Pipes, Valves and Fittings
