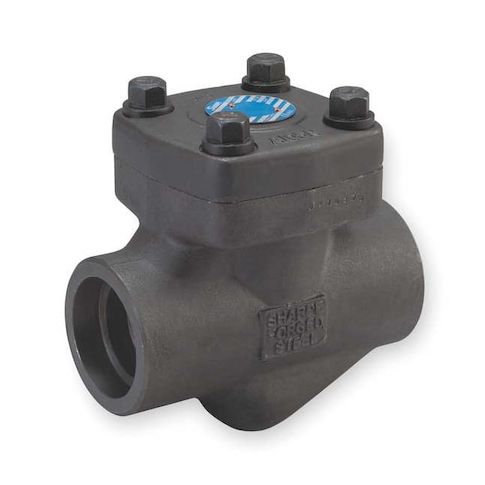

1" Socket Forged Carbon Steel Piston Check Valve MPN:4371001390
This 1in Socket Forged Carbon Steel Piston Check Valve from Sharpe is a reliable and efficient solution for a variety of applications. Suitable for use in horizontal orientations, it features a single flow design and a cracking pressure of 10 psi, making it ideal for applications where precise control is necessary. The valve's 304 stainless steel and graphite seals ensure a long-lasting and durable performance, while its ability to withstand temperatures up to 800°F and pressures of up to 2,000 psi make it a versatile choice for use in water and steam systems. Ideal for industrial and commercial applications.
Top product features:
- Forged carbon steel construction
- Piston design for inline operation
- 304 stainless steel and graphite seals for durability and resistance to corrosion
Top product applications:
- Steam Power Generation Systems
- Industrial Water Treatment Systems
- Oil and Gas Refining and Processing Plants
SHARPE VALVES 4371001390 is a 1 in socket x socket forged carbon steel piston check valve with an inline body design. It is a 2-way, single-flow valve for steam and water service, using a guided piston mechanism to support one-way flow and reduce reverse flow under specified operating conditions. This valve is designed for horizontal mounting and has a 10 psi cracking pressure.
Key Features:
- Valve type: Piston check valve with inline piston mechanism and inline body style
- Body material: Forged carbon steel
- Connection: 1 in female socket x female socket
- Flow rating: 16 gpm with Cv of 6
- Pressure ratings: 2000 psi at 100 degrees F for water
- 800 psi WSP for steam
- 1,975 psi maximum operating pressure
- Temperature range: 0 to 800 degrees F
- Internal materials: 316 stainless steel check mechanism and spring
- Seal and seat materials: 304 stainless steel, graphite seal, and Stellite seat
- Standards: Meets multiple applicable API, ASME, and NACE standards
- Dimensions: 4 3/8 in length
- 2 31/64 in cap to inlet center
- 2 1/2 in cap to inlet center height
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 3.00
- Package Height: 4.50
- Package Weight: 7.00
