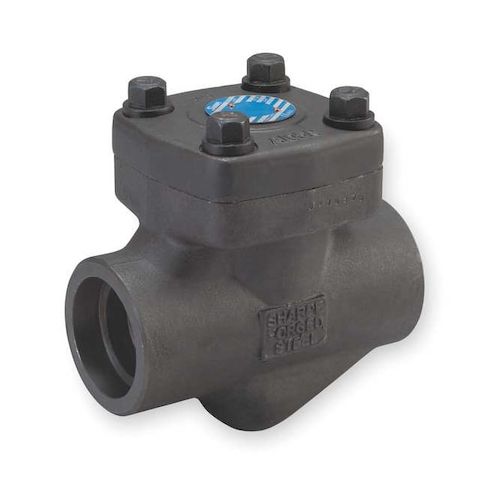

2" Socket Forged Carbon Steel Piston Check Valve MPN:4371001420

• The SHARPE VALVES 4371001420 is a 2 in inline piston check valve with socket x socket female connections and a forged carbon steel body. It is rated for steam and water service, with a piston check mechanism for one-way flow applications and closure upon flow stoppage or reversal. This valve is configured for horizontal mounting and features a single-flow design.

  Key Features:

  • 2 in nominal valve size with 2 in socket x socket female end connections.
  • Forged carbon steel body with inline body style and inline piston mechanism design.
  • Piston check mechanism with 316 stainless steel mechanism and 316 stainless steel spring.
  • Cracking pressure: 43 psi.
  • Flow rating: 60 gpm with Cv of 25.
  • Pressure ratings: 2000 psi at 100 Degrees F for water
  • 800 psi WSP for steam
  • 1,975 psi maximum operating pressure.
  • Temperature ratings: 0 to 800 Degrees F
  • minimum valve temperature: 0 Degrees F.
  • Seal materials: 304 stainless steel and graphite
  • seat material: Stellite.
  • Overall length: 6.77 in
  • cap to inlet center: 3 29/32 in
  • height from cap to inlet center: 3 15/16 in.
  • Standards: meets multiple API, ASME, and NACE standards.
