Check Valve, OP20 Series, Inline Swing, 2 in NPSM FNPSM, Ductile Iron Body MPN:4353013980
Check Valve, OP20 Series, Inline Swing, 2 in NPSM FNPSM, Ductile Iron Body

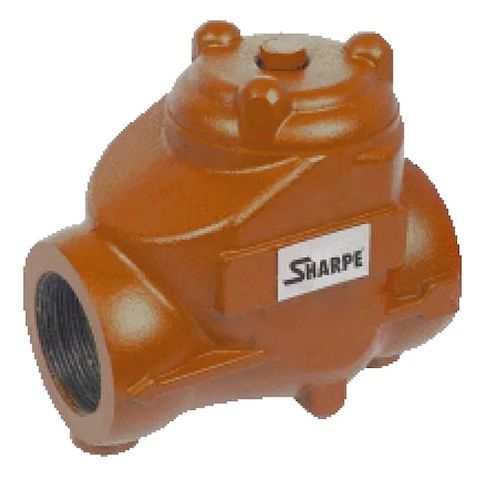

SHARPE OP20 is a 2 in. inline swing check valve configured for one-direction flow control in oil service and oil patch applications. This valve features a ductile iron body, a 316 stainless steel swing check mechanism, and female NPSM threaded connections on both ends. It is rated for horizontal or vertical mounting and has a full-flow design, a maximum operating pressure of 1,000 psi, and a maximum temperature of 280 degrees F.
Key Features:
- Valve type: Inline swing check valve
- Nominal size: 2 in.
- Connections: Female NPSM x Female NPSM, threaded
- Body material: Ductile iron
- Check mechanism material: 316 stainless steel
- Seal material: FKM
- Seat material: Rubber
- Flow design: Single, full flow
- Media: Oil
- Mounting orientation: Horizontal or vertical
- Maximum pressure: 1,000 psi
- Maximum temperature: 280 degrees F
- Overall length: 6.3 in.
- Cap to inlet center: 2 in.
- Standards: NACE MR0175
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 4.00
- Package Height: 5.05
- Package Weight: 11.70
Product info last updated on February 1, 2026 5:39am UTC
Category: Pipes, Valves and Fittings
