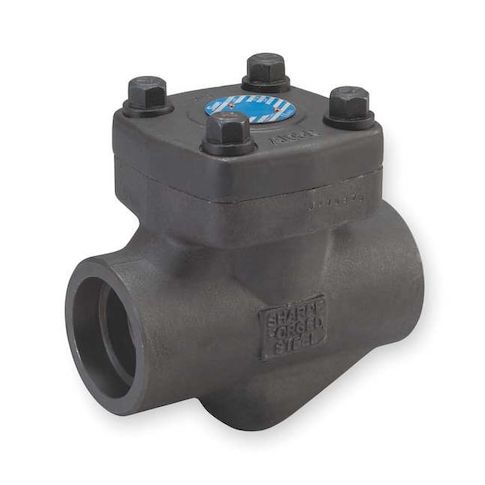

1/2" Socket Forged Carbon Steel Piston Check Valve MPN:4371001370

• The SHARPE VALVES 4371001370 is a 1/2 in. inline piston check valve with socket x socket female connections and a forged carbon steel body. It is designed for general purpose steam and water service and is intended for one-direction flow applications, with a piston check mechanism for reverse-flow shutoff. Specifications include an inline piston design, 8 psi cracking pressure, horizontal mounting orientation, and listed pressure ratings.

  Key Features:

  • Valve type: Piston check valve with inline body design and single-flow configuration.
  • Size and connections: 1/2 in. nominal size with socket x socket female end connections.
  • Body material: Forged carbon steel construction.
  • Internal materials: 316 stainless steel check mechanism and spring.
  • Seal and seat materials: 304 stainless steel and graphite seal
  • Stellite seat.
  • Pressure ratings: 2000 psi at 100 degrees F for water and 800 psi WSP for steam
  • maximum operating pressure 1,975 psi.
  • Temperature range: 0 to 800 degrees F.
  • Flow data: Cv 2, flow rate 5.9 gpm, cracking pressure 8 psi.
  • Installation: Horizontal mounting orientation.
  • Standards: Meets multiple API, ASME, and NACE standards.
  • Dimensions: Overall length 3.11 in.
  • cap to inlet center 1 57/64 in.
  • height cap to inlet center 1 7/8 in.
