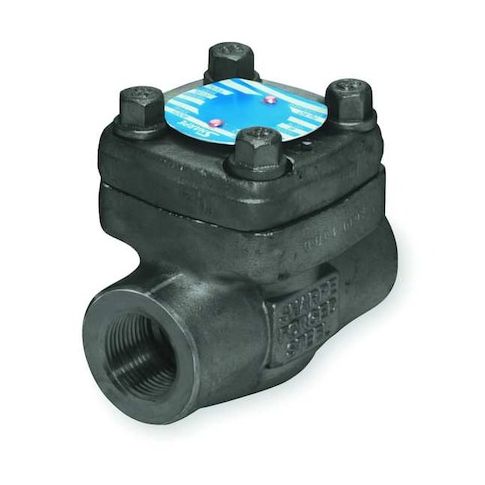

2" FNPT Forged Carbon Steel Piston Check Valve MPN:4371001560
The Sharpe 2in FNPT Forged Carbon Steel Piston Check Valve is a reliable and efficient solution for various industrial applications. Designed for use in high-temperature environments, this valve can withstand temperatures up to 800°F and pressures up to 2,000 psi. Its carbon steel construction provides durability and resistance to corrosion, while the 304 stainless steel and graphite seals ensure a tight seal and long lifespan. Suitable for use in steam and water systems, this valve is ideal for applications in power generation, oil and gas, and chemical processing industries. Its compact design and inline piston mechanism make it a versatile and valuable addition to any system.
Top product features:
- Forged Carbon Steel construction provides durability and resistance to corrosion.
- Piston design allows for precise control of fluid flow and minimizes pressure drop.
- 304 Stainless Steel and Graphite seals ensure a tight, leak-free shut-off at high temperatures.
Top product applications:
- Steam Power Plant
- Chemical Processing Plant
- Oil Refinery
SHARPE VALVES 4371001560 is a 2 in. piston check valve with FNPT x FNPT threaded connections and an inline forged carbon steel body. It is for general-purpose service with steam and water, configured for one-direction flow with automatic closure to help reduce reverse flow. The horizontal-mount valve uses a piston check mechanism with a single-flow design and standard check configuration.
Key Features:
- 2 in. nominal valve size with 2 in. female NPT connections on both ends
- Forged carbon steel inline body with piston check mechanism
- Media: steam, water
- Cracking pressure: 13 psi
- Flow rate: 60 gpm
- Cv: 25
- Pressure ratings: 2,000 psi at 100 Degrees F for water
- 800 psi WSP for steam
- maximum operating pressure: 1,600 psi
- Temperature range: 0 to 800 Degrees F
- Seat material: Stellite
- Seal materials: 304 stainless steel, graphite
- Spring material: 316 stainless steel
- check mechanism material: 316 stainless steel
- Mounting orientation: horizontal
- Standards: Meets multiple API, ASME, and NACE standards
- Overall length: 6.77 in.
