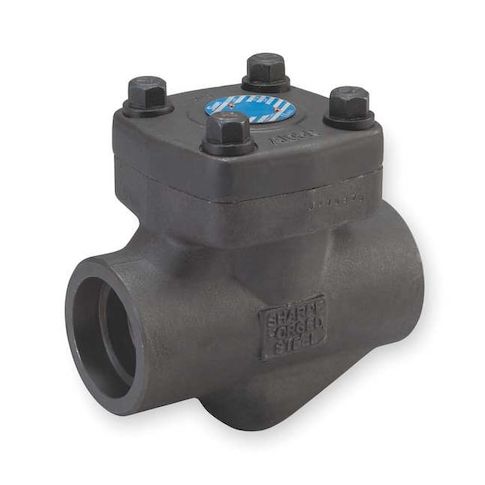

1-1/2" Socket Forged Carbon Steel Piston Check Valve MPN:4371001410
This 1-1/2in Socket Forged Carbon Steel Piston Check Valve from Sharpe is a reliable and durable solution for various industrial applications. Designed for inline use, it features a single flow design and a piston mechanism to ensure smooth and efficient operation. The valve is constructed from high-quality carbon steel and stainless steel components, allowing it to withstand extreme temperatures and high water and steam pressures. Suitable for use in a range of industries, including oil and gas, chemical processing, and power generation, this valve provides a long-lasting and leak-free solution for critical applications.
Top product features:
- Forged Carbon Steel Construction provides durability and resistance to corrosion
- Piston Check Valve design allows for precise control of fluid flow
- 304 Stainless Steel and Graphite seals ensure leak-tight operation in extreme temperatures
Top product applications:
- Steam Power Plants
- High-Temperature Piping Systems
- Industrial Process Control Systems
The SHARPE VALVES 4371001410 is a 1-1/2 in. socket forged carbon steel piston check valve for general-purpose service with steam and water. Its inline piston design is intended for one-way flow and closure in response to reverse flow in horizontal piping systems. This valve features a single-flow design, a 24 psi cracking pressure, and pressure ratings up to 2000 psi at 100 Degrees F for water and 800 psi WSP for steam.
Key Features:
- Valve type: Piston check valve with inline body design.
- Body material: Forged carbon steel.
- Connection type: Socket x Socket with female connections on both ends.
- Connection size: 1-1/2 in. on both ends.
- Media: Steam and water.
- Flow capacity: 38 gpm with a Cv of 14.
- Cracking pressure: 24 psi.
- Temperature range: 0 to 800 Degrees F.
- Pressure ratings: Water: 2000 psi at 100 Degrees F
- Steam: 800 psi WSP
- Maximum operating pressure: 1,975 psi.
- Internal materials: 316 stainless steel check mechanism and spring.
- Seal and seat materials: 304 stainless steel, graphite seal, and Stellite seat.
- Mounting orientation: Horizontal.
- Standards: Meets multiple applicable API, ASME, and NACE standards.
- Overall length: 5.98 in.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.30
- Package Width: 4.00
- Package Height: 6.50
- Package Weight: 13.90
