Check Valve, Series 2027, 2 in, Inline Swing, Socket Weld x Socket Weld, 316 Stainless Steel MPN:4371000370
This stainless steel check valve is designed for high-pressure applications, featuring a maximum steam pressure of 125 psi and a maximum temperature of 350°F. Its PTFE seal and metal seat ensure reliable performance in corrosive, flammable, and toxic environments. Suitable for use in process piping, this valve is ideal for industries handling hazardous materials. Its inline swing design and socket weld connections provide easy installation and maintenance. With a lead time of just one day, this valve is perfect for fast-paced operations. Order now to ensure efficient and safe fluid control in your critical applications.
Top product features:
- Flow Design Single
- Mechanism and Body Design Inline Swing
- PTFE Seal Material
Top product applications:
- Corrosives
- Flammable
- Process Piping

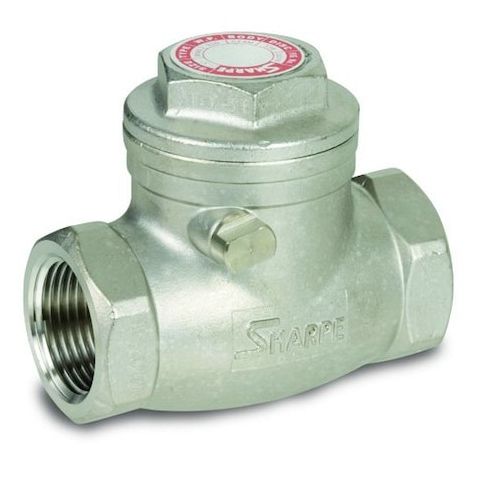

SHARPE 4371000370 is a 2 in inline swing check valve configured for one-direction flow applications. It features a 316 stainless steel body, a 316 stainless steel check mechanism, a PTFE seal, and a metal seat. Supplier-listed service includes steam and select process piping media
- confirm compatibility with the application, media, pressure, and temperature ratings. The valve can be mounted horizontally or vertically.
Key Features:
- Inline swing design: 2-way check valve with inline body style.
- Body and mechanism material: 316 stainless steel body and 316 stainless steel check mechanism.
- Connection type: 2 in female socket connections on both ends
- socket weld x socket weld.
- Media: Steam.
- Pressure rating: 125 psi WSP maximum steam pressure.
- Temperature rating: 350 degrees F maximum operating temperature.
- Seal and seat: PTFE seal with metal seat.
- Mounting orientation: Horizontal or vertical.
- Dimensions: 5.42 in overall length
- cap to inlet center 3 9/50 in
- height, cap to inlet center 3 3/16 in.
- Standard: MSS SP-110.
- Valve series: 2027.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.10
- Package Width: 6.10
- Package Height: 4.60
- Package Weight: 5.10
