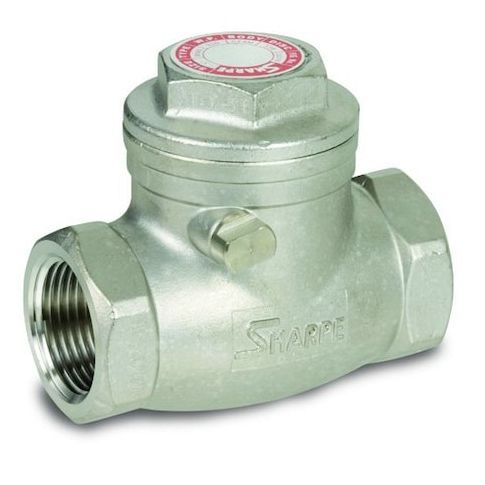

Check Valve, Series 2027, Inline Swing, 3/8 in NPSM Female x Female, 316 Stainless Steel MPN:4371000510
This 2.54 in overall length check valve is designed for use in corrosive, flammable, and toxic process piping applications. Its stainless steel body and PTFE seal ensure durability and resistance to extreme temperatures up to 350°F. With a maximum steam pressure of 125 psi WSP, it can handle demanding industrial processes. The valve's inline swing design allows for easy installation and maintenance. Its compact size and lightweight design make it ideal for use in tight spaces. Suitable for use in a variety of industries, including chemical processing and oil and gas, this check valve provides reliable and efficient fluid control.
Top product features:
- Flow Design Single
- Mechanism and Body Design Inline Swing
- PTFE Seal Material for Corrosive Resistance
Top product applications:
- Corrosives
- Flammable
- Process Piping
SHARPE 4371000510 is an inline swing check valve with a single-flow design for one-direction flow and a check mechanism that closes under reverse-flow conditions. It features a 316 stainless steel body, a 316 stainless steel check mechanism, a PTFE seal, and a metal seat. This valve is intended for steam service and for process piping involving corrosive, flammable, or toxic media. It has 3/8 in female NPSM threaded connections on both ends.
Key Features:
- Valve type: Inline swing check valve with a 2-way flow path.
- Body and internal materials: 316 stainless steel body and 316 stainless steel check mechanism.
- Connections: 3/8 in female NPSM on both ends
- threaded x threaded connection style.
- Seal and seat: PTFE seal with metal seat.
- Pressure and temperature ratings: 125 psi WSP maximum steam pressure
- 350 degrees F maximum operating temperature.
- Body style and flow design: Inline body style with single-flow design.
- Mounting orientation: horizontal or vertical.
- Dimensions: 2.54 in overall length
- 1 17/20 in cap to inlet center
- 1 7/8 in height from cap to inlet center.
- Standard: MSS SP-110.
- Series: 2027.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.77
- Package Width: 1.76
- Package Height: 1.19
- Package Weight: 0.80
