Check Valve, OP20 Series, 3 in, FNPSM x FNPSM, Inline Swing, Ductile Iron Body MPN:4353014180
Check Valve, OP20 Series, 3 in, FNPSM x FNPSM, Inline Swing, Ductile Iron Body

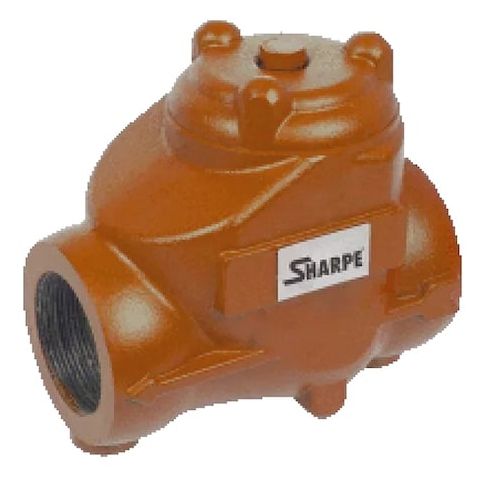

SHARPE 4353014180 is a 3 in threaded check valve with an inline swing design, configured for one-way flow applications with a closure mechanism for reverse-flow control. It is designed for oil service and oil patch applications and features a ductile iron body, 316 stainless steel check mechanism, and FKM seal. The valve supports horizontal or vertical mounting and has a full-flow design.
Key Features:
- Valve type: Check valve with single-flow, 2-way operation
- Mechanism and body design: Inline swing
- Body material: Ductile iron
- Check mechanism material: 316 stainless steel
- Seal material: FKM
- Seat material: Rubber
- Connection type: Threaded, 3 in female NPSM on both ends
- Nominal valve size: 3 in
- Maximum operating pressure: 2,000 psi
- Maximum operating temperature: 280 degrees F
- Mounting orientation: Horizontal, vertical
- Overall length: 8.25 in
- Cap to inlet center: 3 in
- Silent check: Standard
- No counterweight
- Standard: NACE MR0175
- Valve series: OP20
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.25
- Package Width: 6.00
- Package Height: 6.95
- Package Weight: 27.80
Product info last updated on February 7, 2026 2:10pm UTC
Category: Pipes, Valves and Fittings
