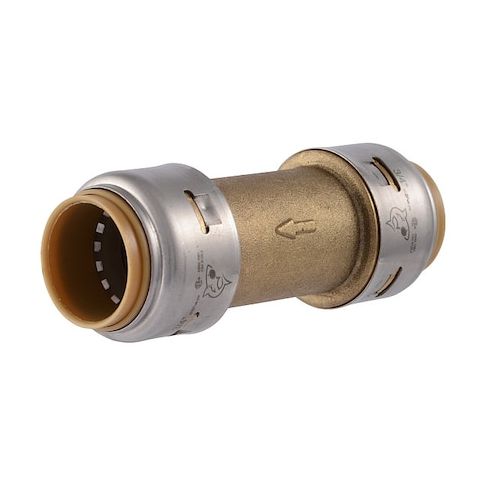

Check Valve MPN:UR2016A
The SharkBite Check Valve is a reliable and versatile solution for general-purpose applications. Designed for use in both horizontal and vertical orientations, this inline spring check valve features a brass body and seat, ensuring durability and resistance to corrosion. With a cracking pressure of 2 psi, it allows for smooth flow control while preventing backflow. Suitable for temperatures between 40°F and 200°F and water pressures up to 200 psi, this check valve is ideal for a wide range of applications, including residential and commercial plumbing, irrigation systems, and more. Its compact design and ease of installation make it a convenient choice.
Top product features:
- Flow Design Single
- Inline Spring Mechanism
- Brass Seat Material
Top product applications:
- General Purpose
- General Purpose
- General Purpose
The SHARKBITE UR2016 check valve is a 3/4 in. inline spring check valve with a brass body and push x push connections. It is intended for one-way flow in specified potable water, hydronic heating/cooling, recirculation, and direct burial applications. The valve supports horizontal or vertical mounting.
Key Features:
- Valve type: Inline spring check valve.
- Size: 3/4 in. nominal valve size with 3/4 in. connections on both sides.
- Connections: Push x push connection style.
- Materials: Brass body and brass seat with an EPDM piston check mechanism.
- Cracking pressure: 2 psi.
- Pressure ratings: 200 psi maximum water pressure
- 400 psi maximum operating pressure.
- Temperature range: 40 degrees F minimum to 200 degrees F maximum.
- Mounting orientation: Horizontal or vertical.
- Certifications/standards: Meets multiple applicable NSF, ANSI, ASSE, ASTM, CAN/ULC, CSA, and UL standards.
- Overall length: 3.5 in.
Additional Information
- Country of Origin: AU
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 7.00
- Package Height: 1.30
- Package Weight: 1.60
