Check Valve, Push x Push, Brass, 3.5 in MPN:UR2016
Check Valve, Push x Push, Brass, 3.5 in

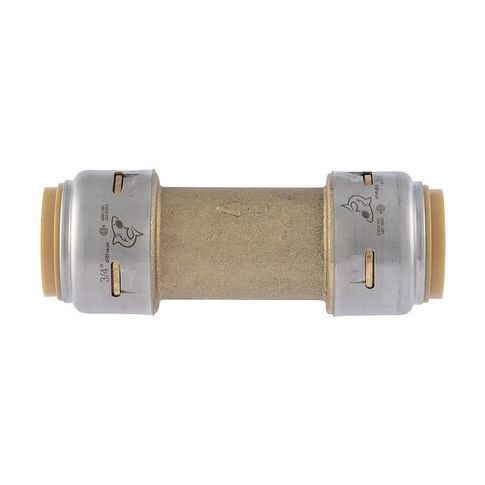

The SHARKBITE UR2016 is a 3/4 in inline check valve with push x push connections, a brass body, and a brass seat. It is configured for one-direction flow control in potable water, hydronic heating/cooling, recirculation, and direct burial applications. The inline spring design supports horizontal or vertical mounting.
Key Features:
- 3/4 in nominal valve size with 3/4 in connections on both sides
- Push x push connection for joining compatible pipe or tube
- Brass body and brass seat
- Inline spring mechanism with single-flow design
- Mounting orientation: horizontal or vertical
- Maximum water pressure: 250 psi
- Maximum operating pressure: 400 psi
- Operating temperature range: 40 degrees F to 200 degrees F
- NSF 61 certified
- Overall length: 3.5 in
- Standards: Meets multiple ANSI, ASSE, ASTM, CAN/ULC, CSA, and UL standards
Additional Information
- Country of Origin: AU
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.20
Product info last updated on February 18, 2026 9:40pm UTC
Category: Pipes, Valves and Fittings
