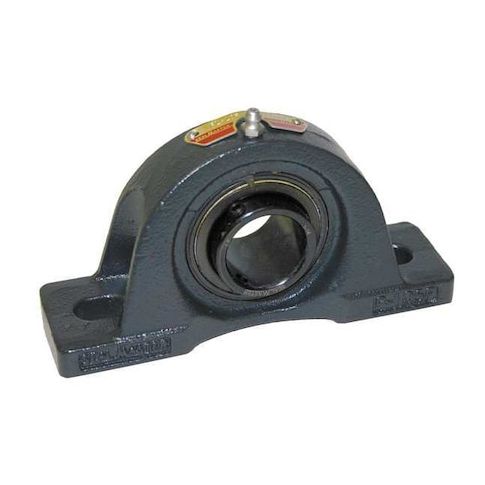

Pillow Block Bearing, Cast Iron, Set Screw Locking, Ball Insert, 1 in Dia, Alloy Steel MPN:NPL-16
Pillow Block Bearing, Cast Iron, Set Screw Locking, Ball Insert, 1 in Dia, Alloy Steel
The Sealmaster Pillow Block Bearing, Ball, 1in Bore is a reliable and versatile solution for various industrial applications. Its compact design, with a base height of 0.5 in and a base width of 1.5 in, allows for easy installation in tight spaces. The bearing insert, made of alloy steel, provides excellent durability and resistance to wear and tear. Suitable for temperatures ranging from -20°F to 220°F, this bearing is ideal for use in machinery, equipment, and manufacturing processes. Its double-sealed closure ensures long-lasting performance and minimizes maintenance needs, making it an excellent choice for a wide range of applications.
Top product features:
- Double sealed closure for protection against contaminants and moisture
- Cast iron housing for durability and resistance to wear
- Bolt-through mount design for secure and flexible installation options
Top product applications:
- Industrial equipment such as conveyor belts and machinery
- Pumps and other rotating machinery
- Gearboxes and other heavy-duty applications
Pillow Block Bearing, Base Height 0.5 in, Base Width 1.5 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Center Height 1 5/16 in, Closure Double Sealed, Housing Material Cast Iron, Lubricant Material NGLI #2 Equivalent, Maximum Temperature 220 Degrees F, Minimum Temperature -20 Degrees F, Mount Hole Center-to-Center Length 4 3/8 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2.687 in, Overall Length 5.5 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 1.90
- Package Height: 6.00
- Package Weight: 2.05
Product info last updated on March 1, 2026 8:07am UTC
Category: Bearings, V-belts and Power Transmission Equipment
